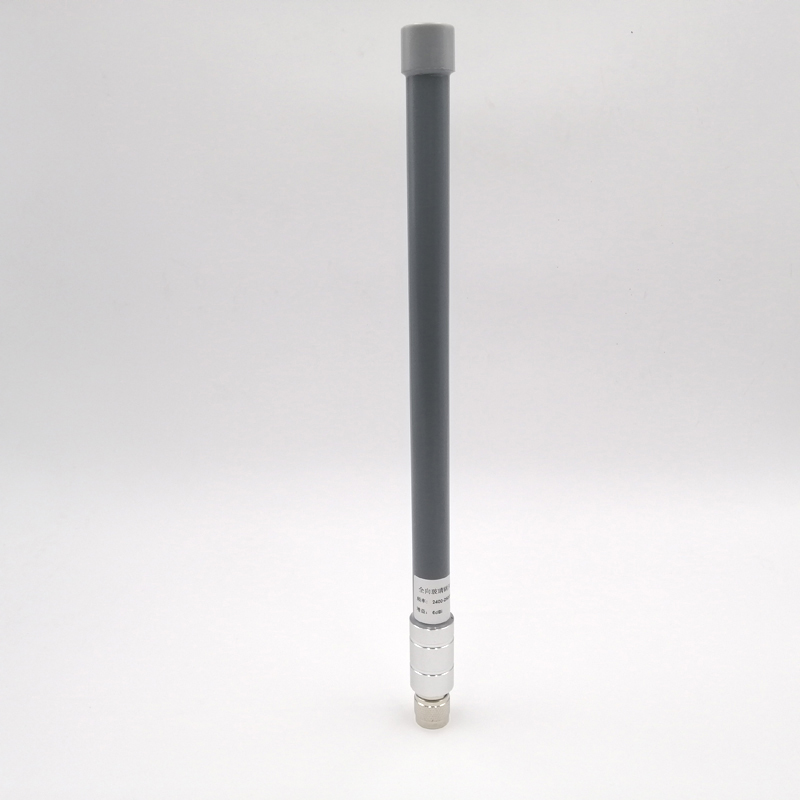

2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm
2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm
2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm
2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm
2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm

2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10347-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Frequency:
2400-2500MHz
VSWR:
<2.0
Peak Gain:
6dBi
Impedance:
50
Frequency:
2400-2500MHz
VSWR:
<2.0
Peak Gain:
6dBi
Impedance:
50
Description
2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm

Omni Antenna Fiber Glass antenna FRP Antenna WIFI Antenna 2.4G Antenna 16x200mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 6dBi
Efficiency ≈83%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 25±5°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N -J connector
Dimension Φ20*350mm
Weight 0.123Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground



2. Antenna - S Parameter Test Data

2.1 VSWR

2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 0



2.2  Total Efficiency & Gain:

Frequency(MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 5.72 5.65 5.64 5.76 5.72 5.82 5.81 5.73 5.64 5.69 5.74
Efficiency (%) 83.28 81.03 80.63 83.03 83.49 86.18 85.25 82.97 82.38 83.67 84.07


2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 1


2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
2400MHz

2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 2

 2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 3 2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 4
2450MHz 2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 5 2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 6 2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 7
2500MHz 2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 8 2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 9 2.4G 6dBi wifi omnidirectional waterproof fiberglass antenna 20x350mm 10
