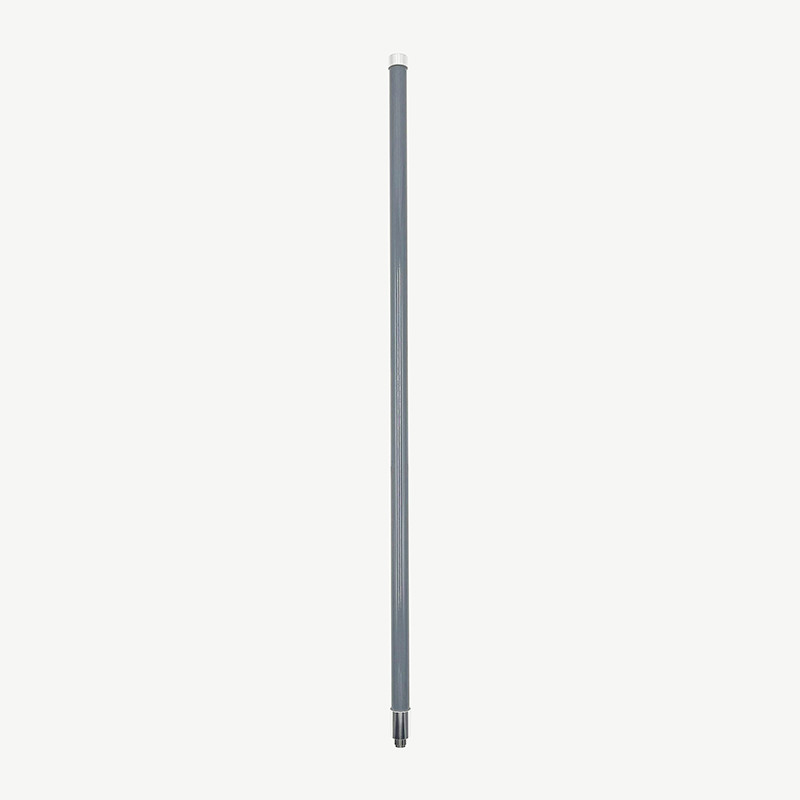

SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna
SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna
SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna
SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna
SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna
SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna

SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11800-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 1K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Frequency:
1420-1450M
VSWR:
<2.0
Peak Gain:
6dBi
Impedance:
50
Frequency:
1420-1450M
VSWR:
<2.0
Peak Gain:
6dBi
Impedance:
50
Description
SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna

2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency 1420-1450MHz(Customizable others)
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 6dBi
Efficiency ≈81%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 25±3°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N - J
Dimension Φ16*600mm
Colour Army Grey
Weight 0.15Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 45 ˚C ~ + 85 ˚C
Storage Temperature - 45 ˚C ~ + 85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground





2. Antenna - S Parameter Test Data

2.1 VSWR



SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 0

2.2  Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency(%)
1420 5.7 82.2
1425 5.9 83.5
1430 5.9 83.4
1435 6.0 82.9
1440 5.9 81.4
1445 5.7 77.6
1450 5.6 76.2









2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
1420MHz SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 1

 SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 2 SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 3
1435MHz SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 4 SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 5 SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 6
1450MHz SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 7 SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 8 SMA male 1.4G 6dbi Omnidirectional Fiberglass reinforced plastic Waterproof Antenna 9
