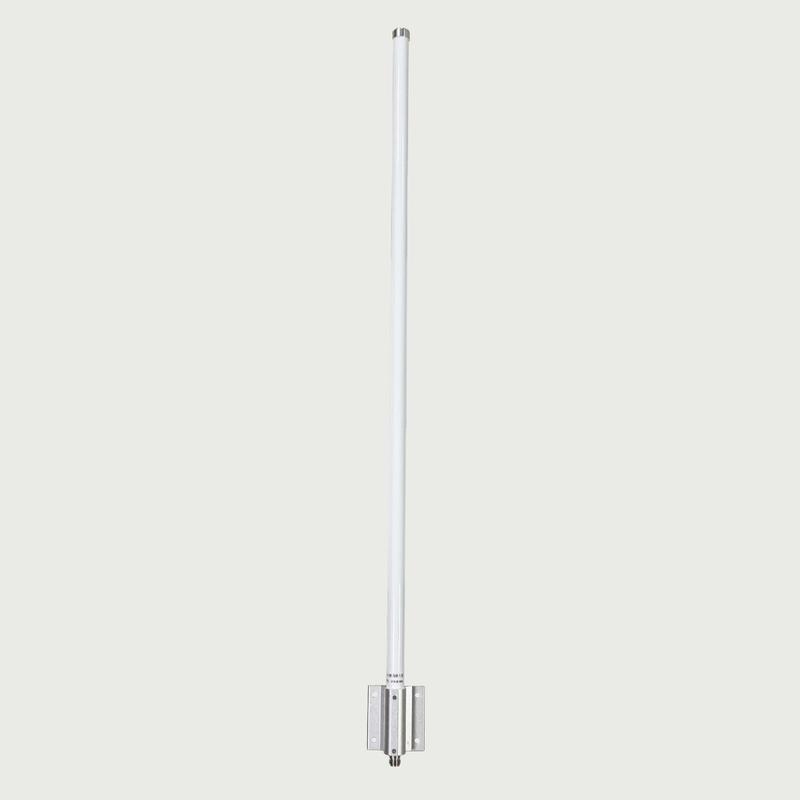

N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100

N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11888-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

Waterproof N female Omnidirectional Antenna

,

7dbi Fiberglass Waterproof Antenna

,

1420-1450M Omnidirectional Antenna

Frequency:
1420-1450M
VSWR:
<2.0
Peak Gain:
7dBi
Impedance:
50
Frequency:
1420-1450M
VSWR:
<2.0
Peak Gain:
7dBi
Impedance:
50
Description
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100

2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency 1420-1450MHz(Customizable others)
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 7dBi
Efficiency ≈74%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 12±3°
Max Power 100W
B. Material & Mechanical Characteristics
Connector Type N - k
Dimension Φ25*1100mm
Colour white
Weight 0.56Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 45 ˚C ~ + 85 ˚C
Storage Temperature - 45 ˚C ~ + 85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground





2. Antenna - S Parameter Test Data

2.1 VSWR



N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 0

2.2  Total Efficiency & Gain:

Frequency(MHz) 1420 1425 1430 1435 1440 1445 1450
Gain (dBi) 7.3 7.4 7.4 7.4 7.3 7.2 7.2
Efficiency (%) 74.6 75.5 74.8 74.2 73.3 70.7 70.9
N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 1









2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
1420MHz N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 2

 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 3 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 4
1435MHz N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 5 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 6 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 7
1450MHz N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 8 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 9 N female 1.4G 1420-1450M 7dbi Omnidirectional Fiberglass Waterproof Antenna 25x1100 10
