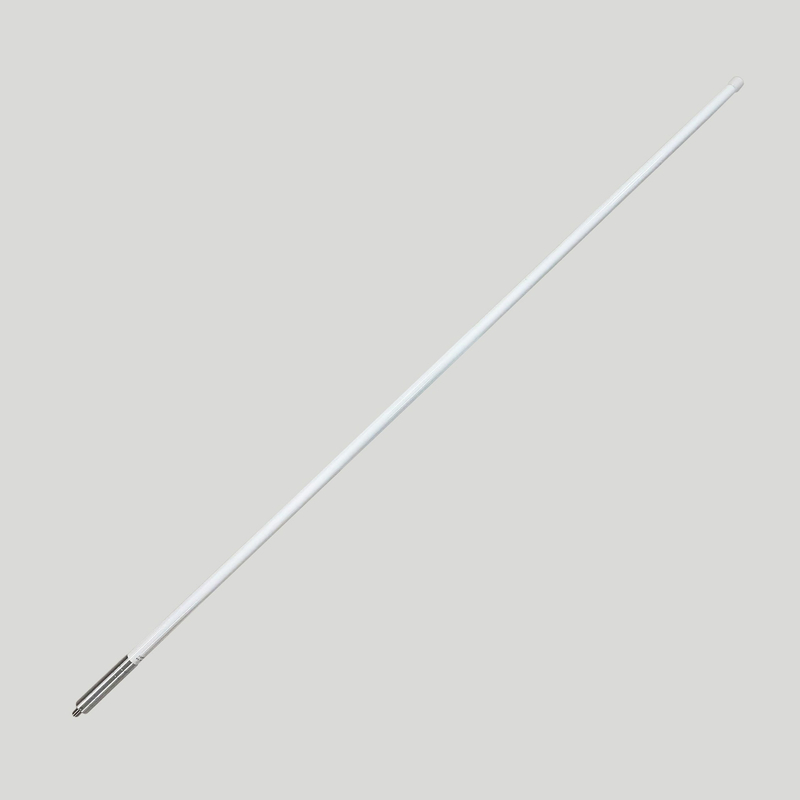

N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400
N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400

N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11885-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

N female Waterproof Omnidirectional Antenna

,

N female Omnidirectional Waterproof Antenna

,

9dbi Omnidirectional Waterproof Antenna

Frequency:
650-680M
VSWR:
<2.0
Peak Gain:
9dBi
Impedance:
50
Frequency:
650-680M
VSWR:
<2.0
Peak Gain:
9dBi
Impedance:
50
Description
N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400

2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency 650-680MHz(Customizable others)
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 9±1dBi
Efficiency ≈80%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 12±3°
Max Power 100W
B. Material & Mechanical Characteristics
Connector Type N - k
Dimension Φ32*2400mm
Colour white
Weight 1.3Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 45 ˚C ~ + 85 ˚C
Storage Temperature - 45 ˚C ~ + 85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground





2. Antenna - S Parameter Test Data

2.1 VSWR



N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 0

2.2  Total Efficiency & Gain:

Frequency(MHz) 650 655 660 665 670 675 680
Gain (dBi) 6.6 6.9 6.9 7.3 7.8 7.9 8.1
Efficiency (%) 68.3 71.7 72.1 77.8 83.8 85.0 88.1

N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 1









2.3 Radiation Pattern
  3D 2D-Horizontal 2D-Vertical
650MHz N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 2

 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 3 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 4
665MHz N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 5 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 6 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 7
680MHz N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 8 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 9 N female 650-680M 9dbi Omnidirectional Fiberglass Waterproof Antenna 32x2400 10
