2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna

Name: 2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10540-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10540-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              5.8G directional antenna, 18dB directional antenna, dual polarized directional antenna


Frequency:	5150-5850MHz	VSWR:	<2.0
Peak Gain:	18dBi	Impedance:	50

Frequency:	5150-5850MHz
VSWR:	<2.0
Peak Gain:	18dBi
Impedance:	50

Description

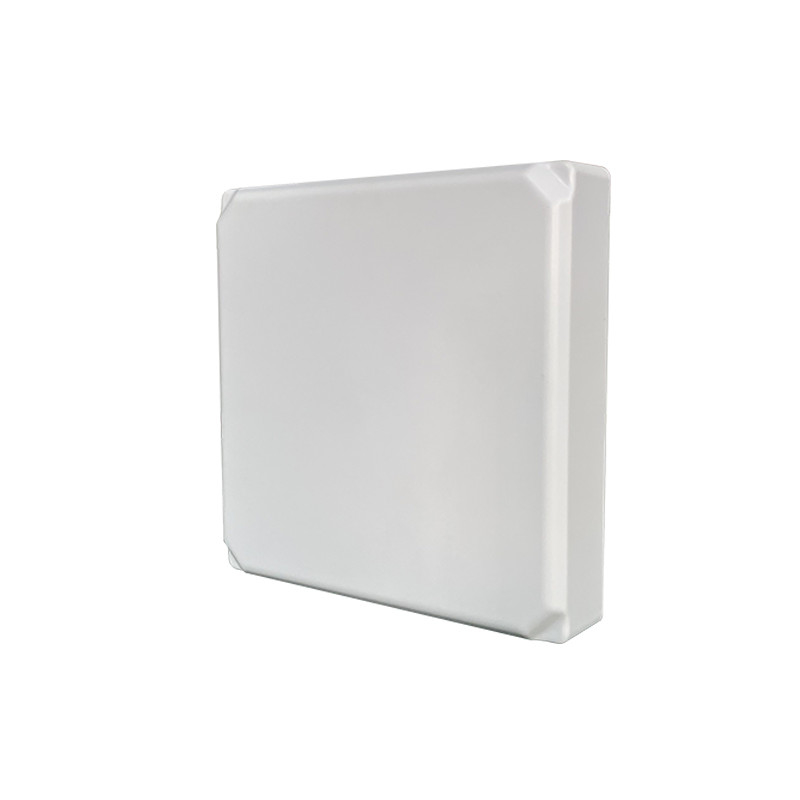

2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna

2*N female 5.8G 5150-5850M wifi 18dBi dual-polarized directional antenna

1. Specification

A. Electrical Characteristics
Frequency	5150-5850MHz
S.W.R.	<= 2.0
Antenna Gain	18dBi
Polarization	H+V
Horizontal Beamwidth	18±5°
Vertical Beamwidth	18±5°
F/B	>25dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	2*N Female connector
Dimension	19019040mm
Radome material	ABS
Weight	0.5Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
2*N Female 5.8G 5150-5850M Wifi 18dBi Dual Polarized Directional Antenna 0

2.2 Total Efficiency & Gain:

Port 1(水平极化)		Port 2(垂直极化)
Frequency(MHz)	Gain(dBi)	Frequency(MHz)	Gain(dBi)
5150	18.551	5150	18.248
5200	18.463	5200	18.847
5250	18.333	5250	19.129
5300	18.18	5300	19.285
5350	18.461	5350	19.575
5400	18.613	5400	19.448
5450	18.698	5450	19.491
5500	18.629	5500	19.456
5550	18.711	5550	19.299
5600	18.643	5600	19.377
5650	18.87	5650	19.468
5700	18.936	5700	19.428
5750	19.218	5750	19.554
5800	19.071	5800	19.481
5850	19.035	5850	19.178

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
5150MHz
5500MHz
5850MHz
