UWB PCB Outdoor Directional Antenna 600MHz-10GHz 9dBi 120x120x1

Name: UWB PCB Outdoor Directional Antenna 600MHz-10GHz 9dBi 120x120x1
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: 24.02.05.009
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: 24.02.05.009

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              9dBi Outdoor Directional Antenna, 120x120x1 Outdoor Directional Antenna, 600MHz-10GHz Outdoor Directional Antenna


Frequency:	600-960MHZ; 1710-8500MHz; 8500-10GHz	VSWR:	<4.0/<2.5/<3
Peak Gain:	1.6dBi/9dBi/7.6dBi	Impedance:	50

Frequency:	600-960MHZ; 1710-8500MHz; 8500-10GHz
VSWR:	<4.0/<2.5/<3
Peak Gain:	1.6dBi/9dBi/7.6dBi
Impedance:	50

Description

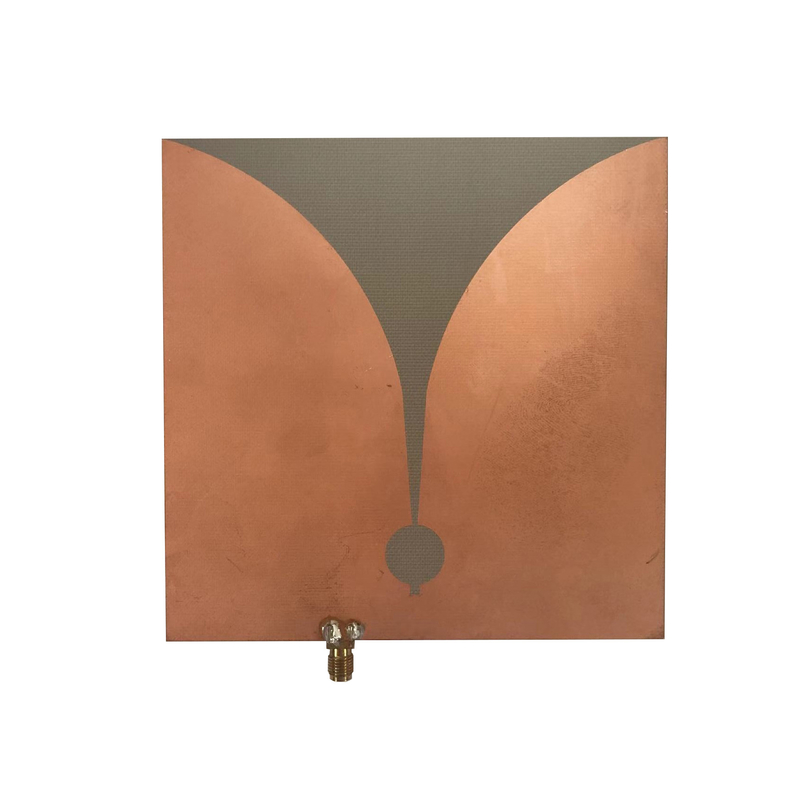

UWB PCB Outdoor Directional Antenna 600MHz-10GHz 9dBi 120x120x1

1. Specification

A. Electrical Characteristics
Frequency	600-960MHz	1710-8500MHz	8500-10000MHz
S.W.R.	<4.0	<2.5	<3.0
Antenna Gain	1.6dBi	9dBi	7.6dBi
Polarization	Vertical	Vertical	Vertical
Horizontal Beamwidth	95°- 115°	20°- 360°	25°- 75°
Vertical Beamwidth	93°- 150°	50°- 180°	60°- 90°
Impedance	50Ohm	50Ohm	50Ohm
Max. Power	50W	50W	50W
B. Material & Mechanical Characteristics
Connector Type	SMA connector
Dimension	1201201.0mm
Weight	0.035Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%

2. Antenna - S Parameter Test Data

2.1 VSWR

UWB PCB Outdoor Directional Antenna 600MHz-10GHz 9dBi 120x120x1 0

2.2 Total Efficiency & Gain:

600-7000MHz
Frequency(MHz)	Gain(dBi)	Efficiency (%)	Frequency (MHz)	Gain (dBi)	Efficiency (%)
600.0	0.15	49.71	3400.0	7.40	78.16
630.0	0.18	44.32	3500.0	7.90	77.09
660.0	0.72	49.57	3600.0	7.63	80.42
690.0	0.79	54.08	3700.0	7.40	78.48
720.0	1.17	69.59	3800.0	7.84	83.95
750.0	1.58	78.87	3900.0	8.48	84.80
780.0	1.16	71.79	4000.0	8.02	87.32
810.0	0.92	60.78	4100.0	8.13	88.97
840.0	1.19	60.82	4200.0	8.01	88.79
870.0	0.50	57.04	4300.0	8.00	84.22
900.0	0.37	53.04	4400.0	7.78	82.22
930.0	0.03	57.47	4500.0	7.94	82.59
960.0	-0.48	51.24	4600.0	8.10	79.53
1000.0	0.55	60.06	4700.0	8.20	76.46
1100.0	-0.31	57.52	4800.0	8.21	77.22
1200.0	1.14	57.10	4900.0	8.58	83.48
1300.0	2.09	68.45	5000.0	8.53	82.04
1400.0	3.80	76.21	5100.0	8.77	85.42
1500.0	4.28	81.56	5200.0	8.28	84.01
1600.0	4.49	79.20	5300.0	8.69	87.05
1700.0	4.12	76.43	5400.0	9.07	86.73
1800.0	4.25	78.89	5500.0	8.65	84.92
1900.0	4.26	75.25	5600.0	8.32	82.68
2000.0	4.89	78.99	5700.0	7.99	81.88
2100.0	5.01	80.42	5800.0	7.93	78.43
2200.0	5.64	81.72	5900.0	7.58	76.62
2300.0	5.53	78.89	6000.0	7.07	75.29
2400.0	5.86	71.18	6100.0	6.49	71.49
2500.0	5.84	69.17	6200.0	6.70	73.13
2600.0	6.84	75.93	6300.0	6.76	73.18
2700.0	7.12	80.92	6400.0	6.11	68.60
2800.0	7.40	84.96	6500.0	6.00	71.08
2900.0	7.40	87.84	6600.0	5.42	67.12
3000.0	7.48	86.40	6700.0	5.86	69.74
3100.0	7.50	84.21	6800.0	5.70	67.23
3200.0	7.43	80.46	6900.0	5.56	72.95
3300.0	6.93	74.90	7000.0	5.57	69.93

7100-10000MHz
Frequency(MHz)	Gain(dBi)	Efficiency (%)	Frequency (MHz)	Gain (dBi)	Efficiency (%)
7100.0	5.25	63.23
7200.0	5.56	64.31
7300.0	5.71	62.45
7400.0	6.43	66.84
7500.0	5.81	59.10
7600.0	5.33	56.39
7700.0	4.99	53.14
7800.0	4.95	56.46
7900.0	5.16	55.72
8000.0	4.62	51.67
8100.0	5.33	50.17
8200.0	6.04	51.34
8300.0	6.04	57.25
8400.0	6.32	60.62
8600.0	7.13	65.62
8700.0	7.59	70.96
8800.0	7.66	74.35
8900.0	7.72	78.68
9000.0	6.71	80.12
9100.0	6.60	81.95
9200.0	6.09	78.94
9300.0	6.08	81.56
9400.0	5.64	83.61
9500.0	5.11	82.17
9600.0	5.76	84.16
9700.0	5.32	79.25
9800.0	5.54	79.04
9900.0	4.84	63.94
10000.0	4.54	64.21
