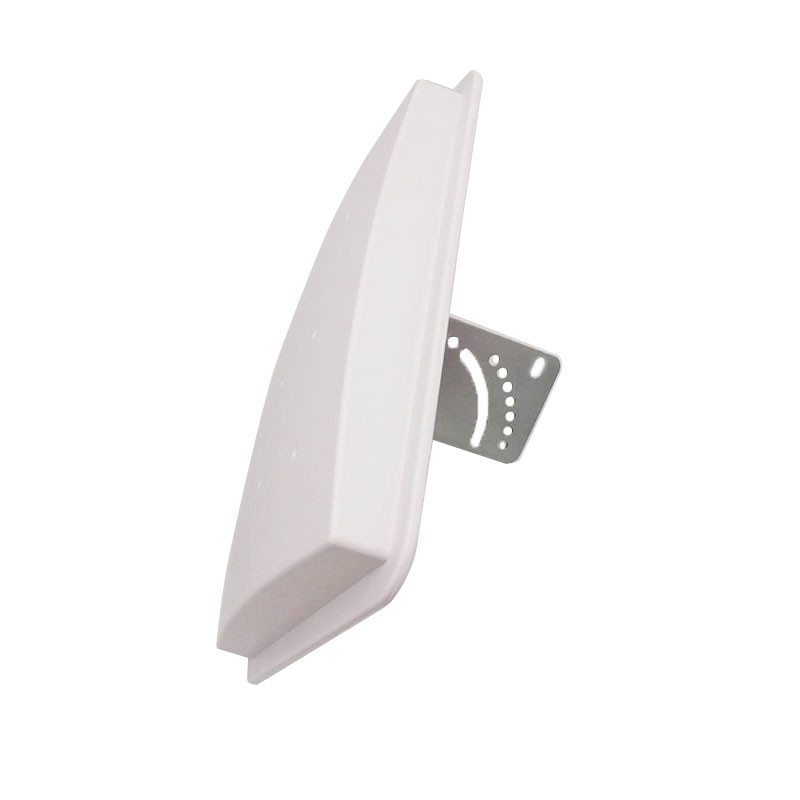

Flat Panel External Directional Antenna 433MHHz 6dBi 256x256x40
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10554-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 433MHz S.W.R. 5.6dB Impedance 50Ohm Max. Power 50W B. Material & Mechanical Characteristics Connector Type N connector Dimension 256*256*40mm Radome material ABS Weight 1.0Kg C. Environmental Operation Temperature - 40 ˚C ~ + 85 ˚C Storage ...
Product Details
Highlight:
6dBi Flat Panel External Directional Antenna
,256x256x40 Flat Panel External Directional Antenna
,433MHHz Flat Panel External Directional Antenna
Frequency:
433MHz
VSWR:
<1.8
Peak Gain:
5dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 433MHz |
| S.W.R. | <= 1.8 |
| Antenna Gain | 5dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 115° |
| Vertical Beamwidth | 104° |
| F/B | >5.6dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 256*256*40mm |
| Radome material | ABS |
| Weight | 1.0Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 428 | 4.5601 |
| 429 | 4.6141 |
| 430 | 4.6876 |
| 431 | 4.7699 |
| 432 | 4.8469 |
| 433 | 4.8917 |
| 434 | 4.9044 |
| 435 | 4.896 |
| 436 | 4.8836 |
| 437 | 4.8781 |
| 438 | 4.8752 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 428MHz | |
|
|
| 433MHz | |
|
|
| 438MHz | |
|
|
