1. SpecificationA. Electrical CharacteristicsFrequency806-960MHz1710-2700MHzS.W.R.20dBImpedance50Ohm Max. Power50W B. Material & Mechanical CharacteristicsConnector TypeN connectorDimension260*260*35mmRadome materialABSMount Pole∅30-∅50Weight1.53KgC. EnvironmentalOperation Temperature- 40 ˚C ~ + 85 ...
Product Details
Highlight:

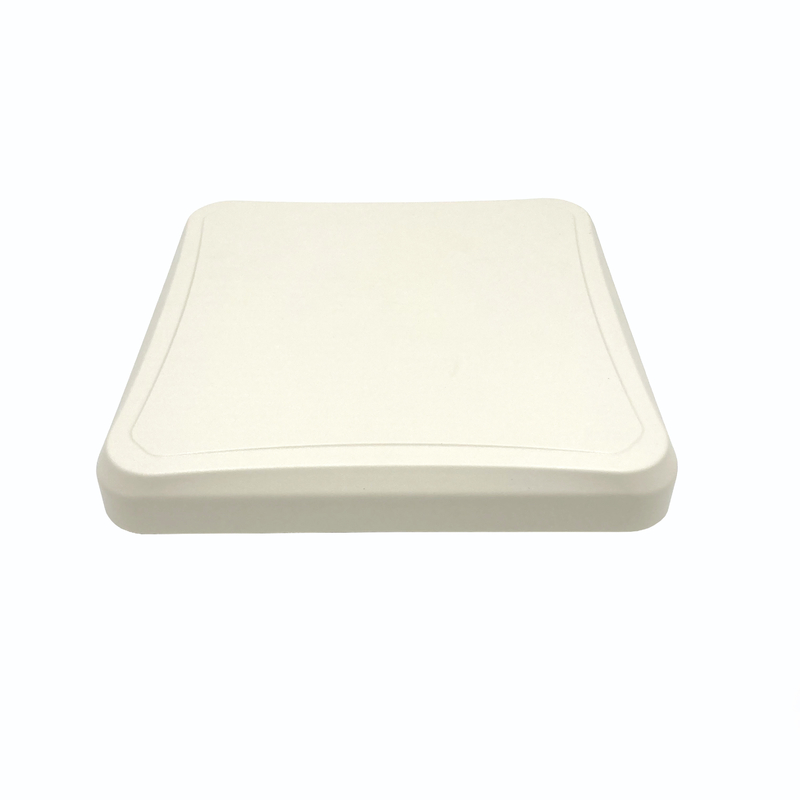

Flat Panel Directional External Antenna
,LTE 4g Directional External Antenna
,260x260x35 Directional External Antenna
Frequency:
806-960MHz; 1710-2700MHz
VSWR:
<2.0/<2.2
Peak Gain:
7dBi/11dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 806-960MHz | 1710-2700MHz |
| S.W.R. | <=2.0 | <=2.2 |
| Antenna Gain | 5-7dBi | 8-11dBi |
| Polarization | Vertical | Vertical |
| Horizontal Beamwidth | 66-94° | 56-80° |
| Vertical Beamwidth | 64-89° | 64-89° |
| F/B | >16dB | >20dB |
| Impedance | 50Ohm | |
| Max. Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N connector | |
| Dimension | 260*260*35mm | |
| Radome material | ABS | |
| Mount Pole | ∅30-∅50 | |
| Weight | 1.53Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C | |
| Operation Humidity | ＜95% | |
| Rated Wind Velocity | 36.9m/s | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 806 | 5.6 |
| 810 | 5.7 |
| 820 | 5.6 |
| 840 | 5.1 |
| 860 | 4.5 |
| 880 | 5.4 |
| 900 | 6.5 |
| 920 | 7.7 |
| 940 | 6.6 |
| 960 | 7.1 |
| 1700 | 9.3 |
| 1800 | 9.6 |
| 1900 | 10.4 |
| 2000 | 10.0 |
| 2100 | 9.9 |
| 2200 | 10.4 |
| 2300 | 11.0 |
| 2400 | 10.3 |
| 2500 | 10.3 |
| 2600 | 9.8 |
| 2700 | 8.5 |
2.3 Radiation Pattern
| 2D-Horizontal | 2D-Vertical | Horizontal & Vertical | |
| 806MHz | | | |
| 900MHz | | | |
| 960MHz | | | |
| 2D-Horizontal | 2D-Vertical | Horizontal & Vertical | |
| 1700MHz | | | |
| 2200MHz | | | |
| 2700MHz | | | |
