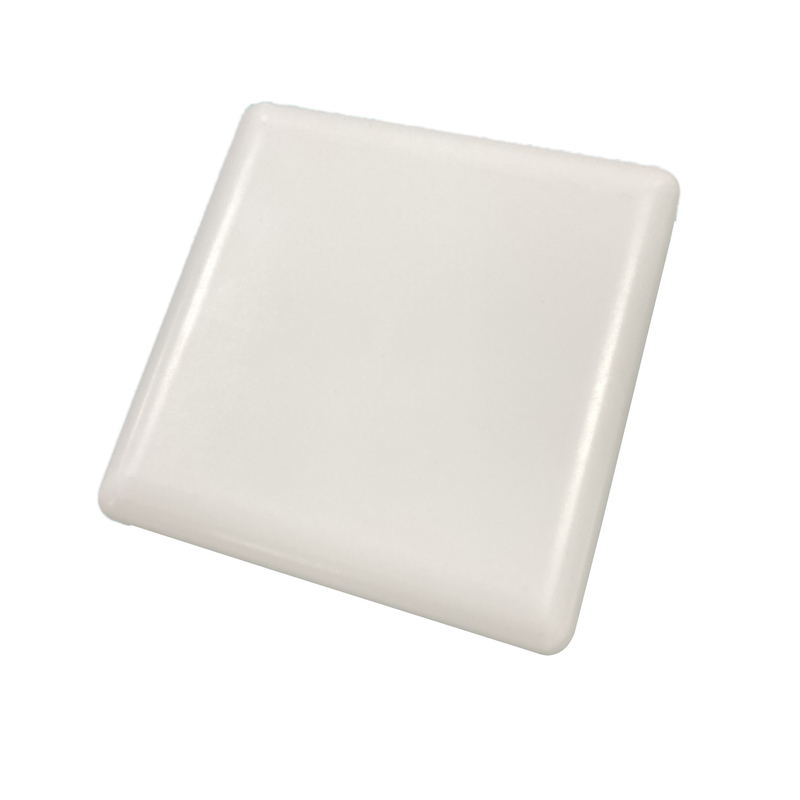

Flat Panel External Directional Wifi Antenna 5.8GHz 15dBi 97x97x23
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10484-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 5150-5850MHz S.W.R. 20dB Impedance 50Ohm Max. Power 50W B. Material & Mechanical Characteristics Connector Type N connector Dimension 97*97*23mm Radome material ABS Weight 0.105Kg C. Environmental Operation Temperature - 40 ˚C ~ + 85 ˚C ...
Product Details
Highlight:
Flat Panel External Directional Wifi Antenna
,5.8GHz outdoor directional antenna
,15dBi outdoor directional antenna
Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
15dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 5150-5850MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 15dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 30±6° |
| Vertical Beamwidth | 40±5° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 97*97*23mm |
| Radome material | ABS |
| Weight | 0.105Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 5150 | 13.6 |
| 5200 | 13.8 |
| 5250 | 14.1 |
| 5300 | 14.3 |
| 5350 | 14.5 |
| 5400 | 14.8 |
| 5450 | 14.9 |
| 5500 | 15.1 |
| 5550 | 15.5 |
| 5600 | 15.4 |
| 5650 | 15.4 |
| 5700 | 15.3 |
| 5750 | 15.5 |
| 5800 | 14.9 |
| 5850 | 14.9 |
2.3 Radiation Pattern
| 2D-Horizontal | 2D-Vertical | Horizontal & Vertical | |
| 5150MHz | |
|
|
| 5500MHz | |
|
|
| 5850MHz | |
|
|
