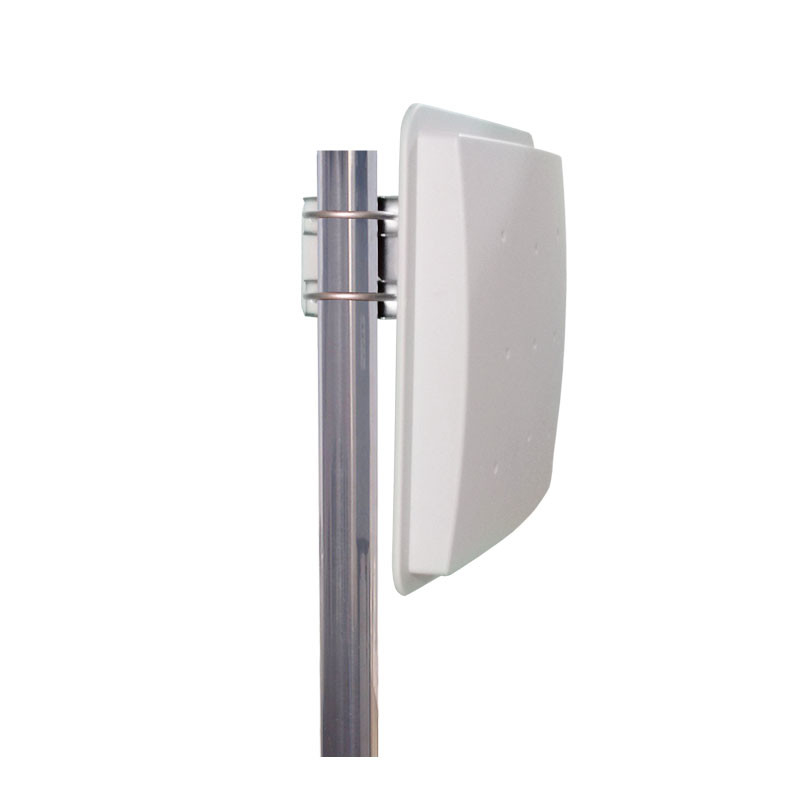

RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm

RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10553-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

RFID Directional Antenna

,

Directional Antenna 9dBi

,

256x256x40mm Directional Antenna

Frequency:
915MHz
VSWR:
<1.5
Peak Gain:
6dBi
Impedance:
50
Frequency:
915MHz
VSWR:
<1.5
Peak Gain:
6dBi
Impedance:
50
Description
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm

Outdoor RFID Directional Antenna Flat Panel antenna 915M900-930M 9dBi 256x256x40

1. Specification

A. Electrical Characteristics
Frequency 900-930MHz
S.W.R. <= 1.5
Antenna Gain dBi
Polarization Vertical
Horizontal Beamwidth 70°
Vertical Beamwidth 60°
F/B >17dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension 256*256*40mm
Radome material ABS
Weight 1.0Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 0





2.2  Total Efficiency & Gain:



Frequency(MHz) Gain(dBi)
900 9.3295
905 9.4348
910 9.622
915 9.7339
920 9.8101
925 9.8493
930 9.8035








2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
900MHz RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 1 RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 2 RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 3
915MHz RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 4 RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 5 RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 6
930MHz RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 7 RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 8 RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm 9
