4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm

Name: 4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10496-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10496-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              lte omnidirectional antenna, 4g omni lte antenna, 4g lte omnidirectional antenna


Frequency:	617-960MHz; 1427-1517MHz; 1710-2700MHz	VSWR:	<3.2
Peak Gain:	2.5dBi/5dBi/8dBi	Impedance:	50

Frequency:	617-960MHz; 1427-1517MHz; 1710-2700MHz
VSWR:	<3.2
Peak Gain:	2.5dBi/5dBi/8dBi
Impedance:	50

Description

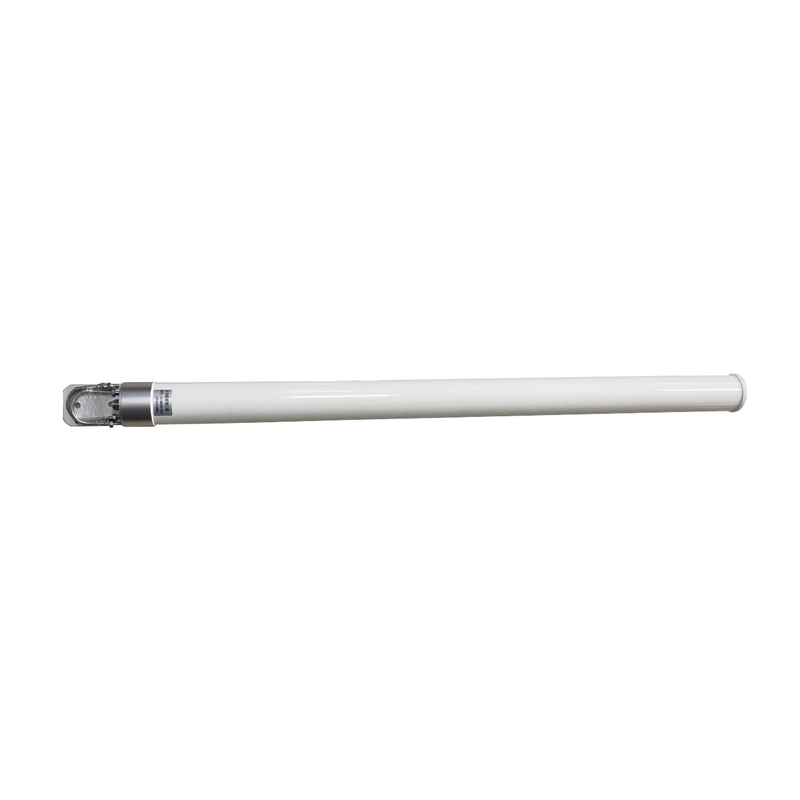

4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna 4G LTE 60x1000

1. Specification

A. Electrical Characteristics
Frequency	617-960MHz	1427-1517MHz	1710-2700MHz
S.W.R.	<3.2	<3.2	<3.2
Antenna Gain	2.5dBi	5dBi	8dBi
Efficiency	≈70%	≈54%	≈69%
Polarization	Linear	Linear	Linear
Horizontal Beamwidth	360°	360°	360°
Vertical Beamwidth	70°±30°	24°±2°	20°±10°
Impedance	50 Ohm	50 Ohm	50 Ohm
Max Power	50W	50W	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ60*1000mm
Weight	1.1Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data
2.1 VSWR

4g Lte Omnidirectional Antenna Fiberglass Antenna 60x1000mm 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	610.0	620.0	630.0	640.0	650.0	660.0	670.0	680.0	690.0	700.0	710.0	720.0	730.0	740.0	750.0	760.0
Gain (dBi)	-1.57	-0.13	1.11	2.79	3.15	2.03	2.02	2.30	2.28	2.74	2.50	0.65	0.31	0.72	1.28	1.94
Efficiency (%)	40.17	49.31	54.88	64.39	63.92	73.95	86.10	94.56	91.13	93.13	83.09	74.11	71.86	68.07	67.40	72.07

Frequency(MHz)	780.0	800.0	820.0	840.0	850.0	860.0	870.0	880.0	890.0	900.0	910.0	920.0	930.0	940.0	950.0	960.0
Gain (dBi)	1.68	1.79	1.46	1.13	1.31	1.52	1.61	1.44	1.76	2.23	2.61	2.66	2.18	1.72	1.59	1.76
Efficiency (%)	75.72	77.86	67.35	63.59	69.71	67.64	66.90	67.99	69.82	74.34	76.26	75.49	70.31	67.22	63.64	61.35

Frequency(MHz)	1427.0	1437.0	1447.0	1457.0	1467.0	1477.0	1487.0	1497.0	1507.0	1517.0
Gain (dBi)	4.44	4.73	4.84	4.48	4.26	3.93	3.85	3.95	3.85	3.87
Efficiency (%)	62.44	63.02	59.68	52.21	49.31	47.83	49.04	50.75	50.02	51.14

Frequency(MHz)	1700.0	1750.0	1800.0	1850.0	1900.0	1950.0	2000.0	2050.0	2100.0	2150.0	2200.0
Gain (dBi)	4.99	5.89	5.78	5.33	5.55	5.95	5.72	6.12	5.63	6.45	6.71
Efficiency (%)	68.18	72.33	70.17	64.21	68.99	68.55	66.65	69.46	67.34	65.00	64.10

Frequency(MHz)	2250.0	2300.0	2350.0	2400.0	2450.0	2500.0	2550.0	2600.0	2650.0	2700.0
Gain (dBi)	7.62	8.13	8.01	7.63	7.78	7.97	7.90	8.09	8.35	8.34
Efficiency (%)	71.29	75.53	71.47	67.92	69.52	67.32	63.37	66.22	72.11	71.09
