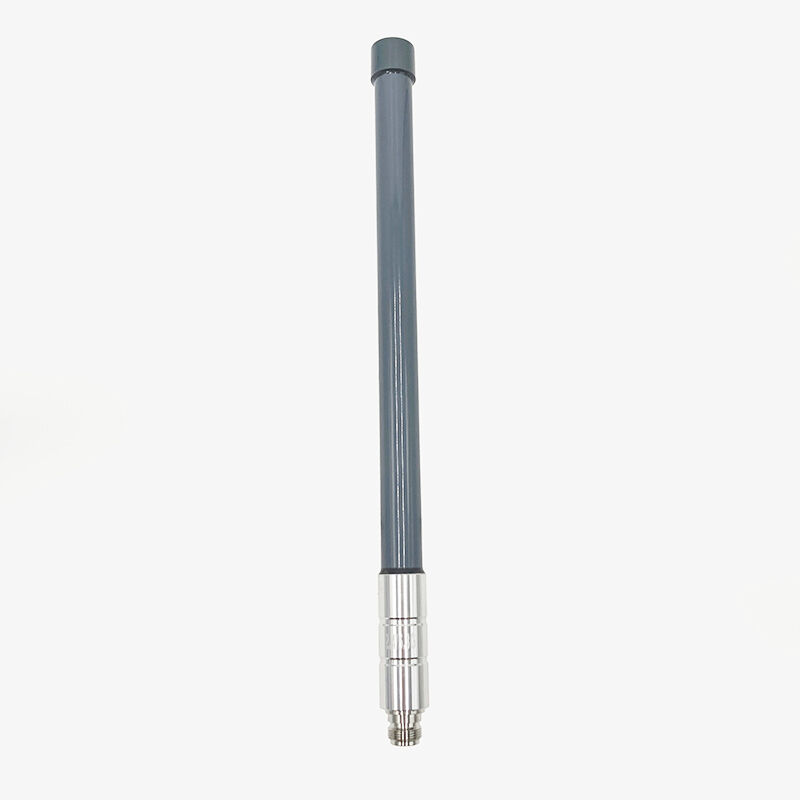

N female 2.4G 5.8G 6dBi Wifi Omni Fiberglass Antenna 20x350mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-12255-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
500 per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 2400-2500/5150-5850MHz VSWR < 2.0 Efficiency ≈66% Peak Gain 4/6dBi Impedance 50 Ohm Polarization Linear Horizontal Beamwidth 360° Vertical Beamwidth 20±5° T90(H) roundness ±3 Max Power 50W B. Material & Mechanical Connector Type N-K Dimension ...
Product Details
Frequency:
2400-2500/5150-5850MHz
VSWR:
<2.0
Peak Gain:
6dBi
Impedance:
50
Product Description
1. Specification
|
A. Electrical Characteristics |
||
| Frequency | 2400-2500/5150-5850MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈66% | |
| Peak Gain | 4/6dBi | |
| Impedance | 50 Ohm | |
| Polarization | Linear | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 20±5° | |
| T90(H) roundness | ±3 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-K | |
| Dimension | Φ20*250±5mm | |
| Weight | 0.14Kg | |
| Radome material | Fiberglass (Grey) | |
|
C. Environmental |
||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
2400 |
4.7 |
64.1 |
5150 |
4.1 |
67.0 |
|
|
2410 |
4.7 |
65.9 |
5200 |
3.6 |
65.9 |
|
|
2420 |
4.7 |
67.5 |
5250 |
3.7 |
68.4 |
|
|
2430 |
4.4 |
65.6 |
5300 |
3.8 |
64.7 |
|
|
2440 |
4.6 |
66.6 |
5350 |
4.1 |
65.4 |
|
|
2450 |
4.0 |
64.5 |
5400 |
4.9 |
70.9 |
|
|
2460 |
4.3 |
66.8 |
5450 |
5.4 |
69.3 |
|
|
2470 |
4.3 |
66.1 |
5500 |
5.9 |
68.3 |
|
|
2480 |
4.3 |
67.3 |
5550 |
6.3 |
66.8 |
|
|
2490 |
4.1 |
64.4 |
5600 |
6.4 |
64.9 |
|
|
2500 |
4.3 |
66.6 |
5650 |
6.6 |
67.4 |
|
|
|
|
|
5700 |
5.9 |
57.9 |
|
|
|
|
|
5750 |
6.6 |
67.4 |
|
|
|
|
|
5800 |
6.3 |
68.2 |
|
|
|
|
|
5850 |
5.4 |
59.1 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz | |
|
|
| 2450MHz | |
|
|
| 2500MHz | |
|
|
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz | |
|
|
| 5550MHz | |
|
|
| 5850MHz | |
|
|
