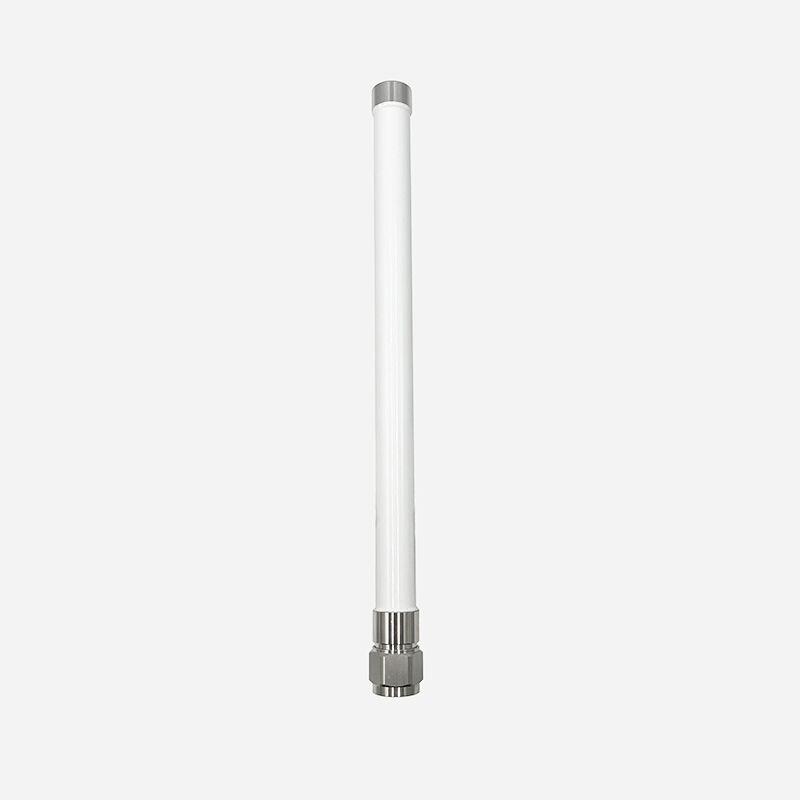

N male 5.8G 515-5850M 6dBi white Fiberglass Omnidirectional WiFi Antenna 16x250mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-12210-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
500 per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 5150-5850MHz Impedance 50 Ohm S.W.R.
Product Details
Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
6dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 5150-5850MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 6dBi |
| Efficiency | ≈78% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 25±5° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N -J connector |
| Dimension | Φ16*250mm |
| Weight | 0.1Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
5150 |
5.5 |
82.2 |
|
5200 |
5.2 |
75.7 |
|
5250 |
5.7 |
83.4 |
|
5300 |
5.7 |
79.4 |
|
5350 |
5.7 |
78.7 |
|
5400 |
5.9 |
82.0 |
|
5450 |
5.8 |
79.9 |
|
5500 |
5.8 |
81.5 |
|
5550 |
5.5 |
75.1 |
|
5600 |
5.8 |
77.9 |
|
5650 |
6.2 |
82.5 |
|
5700 |
5.7 |
74.6 |
|
5750 |
5.7 |
75.6 |
|
5800 |
5.8 |
75.6 |
|
5850 |
5.2 |
64.2 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz | |
|
|
| 5500MHz | |
|
|
| 5850MHz | |
|
|
