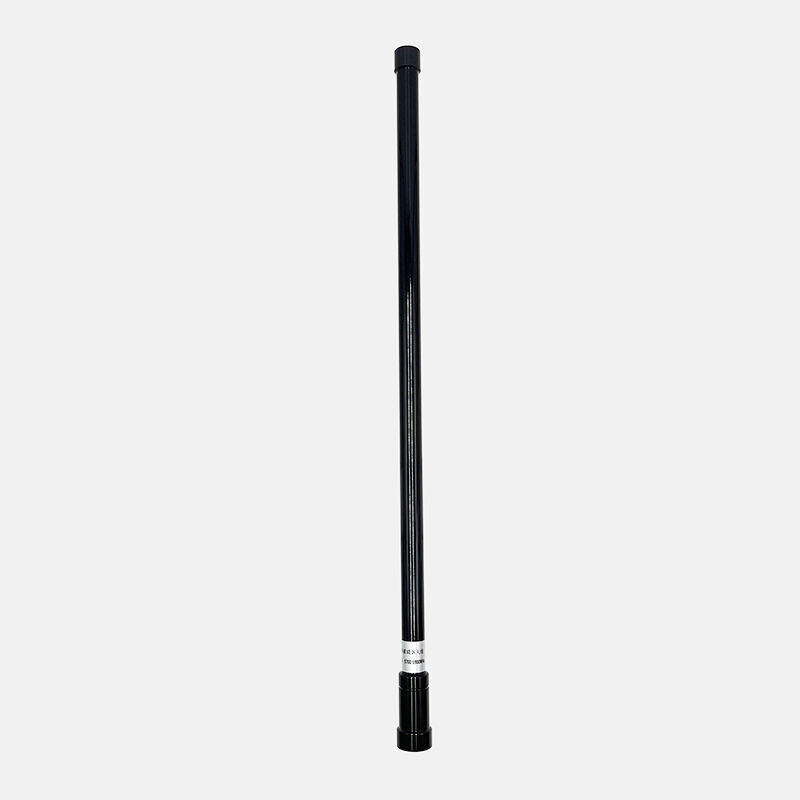

5700 - 5900M Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 10dbi Drone Antenna 20x600mm

Name: 5700 - 5900M Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 10dbi Drone Antenna 20x600mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10847-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10847-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              fiberglass reinforced plastic waterproof antenna, 10dbi omnidirectional drone antenna, 20x600mm waterproof outdoor antenna


Frequency:	5700-5900MHz	VSWR:	<2.0
Peak Gain:	10dBi	Impedance:	50

Frequency:	5700-5900MHz
VSWR:	<2.0
Peak Gain:	10dBi
Impedance:	50

Description

5700 - 5900M Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 10dbi Drone Antenna 20x600mm

1. Specification

A. Electrical Characteristics
Frequency	5700-5900MHz(Customizable others)
Impedance	50 Ohm
S.W.R.	<2.0
Antenna Gain	10dBi
Efficiency	≈84%
Polarization	Linear
Horizontal Beamwidth	360°
Vertical Beamwidth	8-10°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N -J
Dimension	Φ20*600mm
Colour	Army black
Weight	0.2Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 45 ˚C ~ + 85 ˚C
Storage Temperature	- 45 ˚C ~ + 85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	DC Ground

2. Antenna - S Parameter Test Data

2.1 VSWR

5700 - 5900M Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna 10dbi Drone Antenna 20x600mm 0

2.2 Total Efficiency & Gain:

Frequency (MHz)	Gain(dBi)	Efficiency(%)
5700	9.7	78.3
5725	9.8	79.1
5750	10.2	83.0
5775	10.0	79.2
5800	10.4	85.7
5825	10.2	81.9
5850	10.1	84.3
5875	10.4	92.7
5900	10.6	96.4

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
5700MHz
5800MHz
5900MHz
