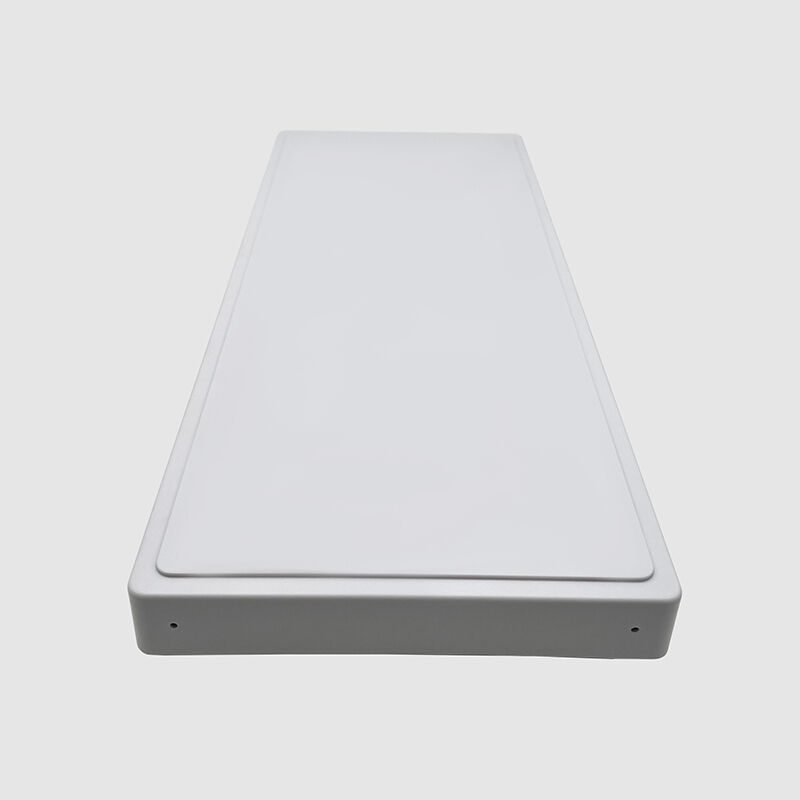

1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm

Name: 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10786-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10786-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 200per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Frequency:	1300-1500MHz	VSWR:	<2.0
Peak Gain:	14dBi	Impedance:	50

Frequency:	1300-1500MHz
VSWR:	<2.0
Peak Gain:	14dBi
Impedance:	50

Description

1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm

1. Specification

A. Electrical Characteristics
Frequency	1300-1500MHz
S.W.R.	<= 2.0
Antenna Gain	14dBi
Polarization	±45°
Horizontal Beamwidth	67-70°
Vertical Beamwidth	19-21°
F/B	>25dB
Impedance	50Ohm
Max. Power	100W
B. Material & Mechanical Characteristics
Connector Type	N-K connector
Dimension	55023040mm
Radome material	ASA
Weight	3.1Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
1300	14.0
1325	14.2
1350	13.5
1375	13.7
1400	13.5
1425	13.0
1450	12.9
1475	12.8
1500	13.2

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
1300MHz
1400MHz
1500MHz
