quality 1.3G1.4G 1300 - 1500M 14dbi ± 45° dual-polarization directional antenna, 390x390x50mm factory

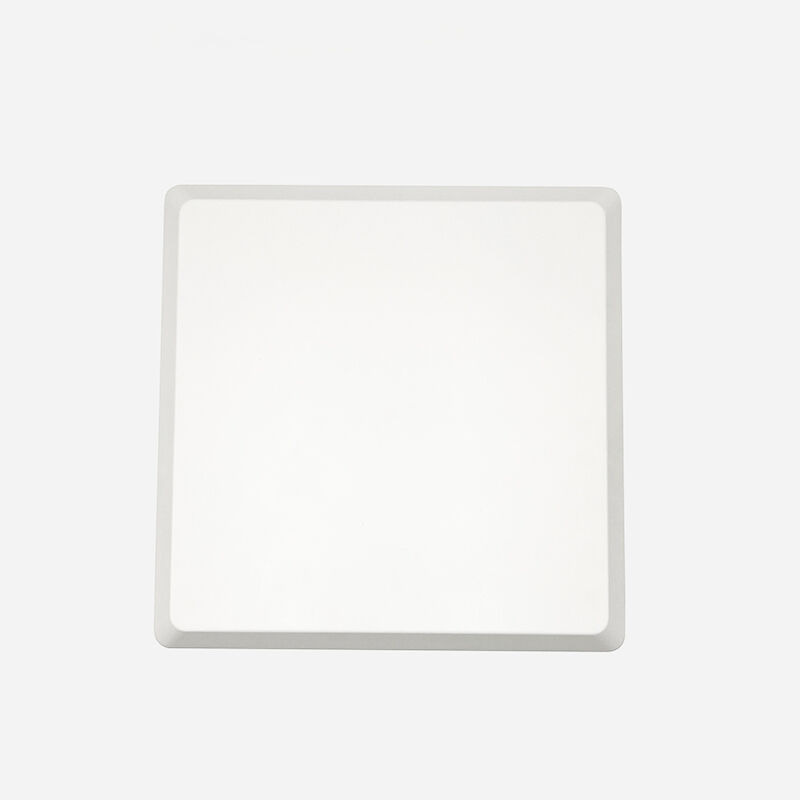

1.3G1.4G 1300 - 1500M 14dbi ± 45° dual-polarization directional antenna, 390x390x50mm

Name: 1.3G1.4G 1300 - 1500M 14dbi ± 45° dual-polarization directional antenna, 390x390x50mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-12007-A
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-12007-A

Trading Properties

Minimum Order Quantity: 10

Payment Terms: T/T

Supply Ability: 200per day

1. Specification A. Electrical Characteristics Frequency 1300-1500MHz S.W.R. 25dB Impedance 50Ohm Max. Power 50W B. Material & Mechanical Characteristics Connector Type 2-N-K connector Dimension 390*390*50mm Radome material ABS Weight 1.7Kg C. Environmental Operation Temperature - 40 ˚C ~ + 85 ˚C ...

Product Details

Highlight:

14dbi dual-polarization directional antenna

,

outdoor waterproof 1.4G antenna

,

390mm directional antenna with ±45° coverage

Frequency: 1300-1500MHz

VSWR: <2.0

Peak Gain: 14dBi

Impedance: 50

Product Description

1. Specification

A. Electrical Characteristics
Frequency	1300-1500MHz
S.W.R.	<= 2.0
Antenna Gain	14dBi
Polarization	±45°
Horizontal Beamwidth	30-35°
Vertical Beamwidth	30-35°
F/B	>25dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	2-N-K connector
Dimension	39039050mm
Radome material	ABS
Weight	1.7Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
1.3G1.4G 1300 - 1500M 14dbi ± 45° dual-polarization directional antenna, 390x390x50mm 0

2.2 Total Efficiency & Gain:

Port 1(+45°)		Port 2(-45°)
Frequency(MHz)	Gain(dBi)	Frequency(MHz)	Gain(dBi)
1300	13.2	1300	13.4
1325	13.7	1325	13.4
1350	13.8	1350	13.6
1375	14.1	1375	14.1
1400	14.4	1400	14.4
1425	14.3	1425	13.9
1450	14.4	1450	14.3
1475	14.4	1475	14.4
1500	14.2	1500	14.4
