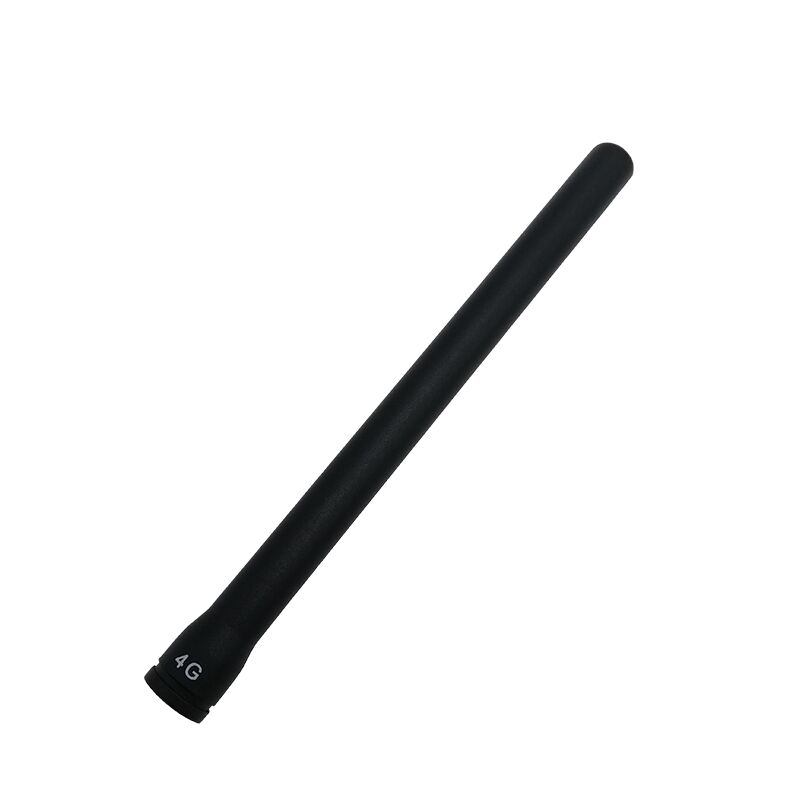

SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10063-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
1K per day
Product Summary
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm1. Specification A. Electrical Characteristics Frequency 806-960MHz 1710-2700MHz S.W.R.
Product Details
Highlight:
SMA male 4G LTE antenna
,waterproof rubber GSM antenna
,omnidirectional 3dbi indoor antenna
Frequency:
806-960MHz; 1710-2700MHz
VSWR:
<3.2
Peak Gain:
3dBi
Impedance:
50
Product Description
SMA male 4G LTE GSM GPRS omnidirectional 3dbi waterproof rubber antenna 12x135mm
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 806-960MHz | 1710-2700MHz |
| S.W.R. | <= 3.2 | <=3.2 |
| Antenna Gain | 2dBi | 3dBi |
| Efficiency | ≈41% | ≈54% |
| Polarization | Linear | Linear |
| Impedance | 50 Ohm | 50 Ohm |
| B. Material & Mechanical Characteristics | ||
| Connector Type | SMA-J | |
| Dimension | ¢12*135mm | |
| Color | TPEE+PC Black | |
| Weight | 0.01Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain
|
Frequency (MHz) |
800.0 |
820.0 |
840.0 |
860.0 |
880.0 |
900.0 |
920.0 |
940.0 |
960.0 |
|
Gain (dBi) |
1.02 |
1.01 |
0.88 |
1.21 |
1.55 |
1.45 |
1.85 |
2.12 |
2.18 |
|
Efficiency (%) |
40.90 |
42.02 |
41.66 |
46.41 |
50.83 |
46.56 |
51.06 |
52.67 |
47.29 |
|
Frequency (MHz) |
1710.0 |
1800.0 |
1890.0 |
1980.0 |
2070.0 |
2160.0 |
2250.0 |
2340.0 |
2430.0 |
2520.0 |
2610.0 |
2700.0 |
|
Gain (dBi) |
3.75 |
4.44 |
4.43 |
2.62 |
2.28 |
3.49 |
4.50 |
3.96 |
4.22 |
3.97 |
3.80 |
3.90 |
|
Efficiency (%) |
49.46 |
46.26 |
53.57 |
48.69 |
44.71 |
55.17 |
62.63 |
61.11 |
61.76 |
56.38 |
50.24 |
52.42 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 800MHz | |
|
|
| 900MHz | |
|
|
| 960MHz | |
|
|
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1700MHz | |
|
|
| 2250MHz | |
|
|
| 2700MHz | |
|
|
