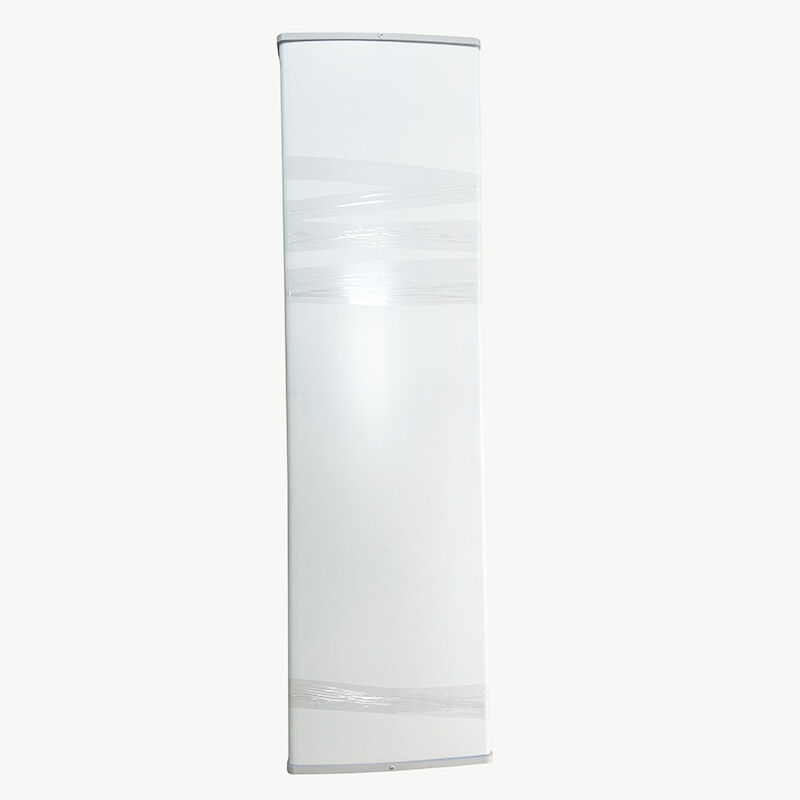

380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10949-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
200 per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 380-450MHz S.W.R. 16dB Impedance 50Ohm Max. Power 100W B. Material & Mechanical Characteristics Connector Type 2*N-K Dimension 1500*410*135mm Radome material UPVC Weight 18.1Kg C. Environmental Operation Temperature - 40 ˚C ~ + 85 ˚C Storage ...
Product Details
Highlight:
11dbi dual-polarized directional antenna
,waterproof base station sector antenna
,450M directional antenna with warranty
Frequency:
380-450MHz
VSWR:
<2.0
Peak Gain:
11dBi
Impedance:
50
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 380-450MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 6dBi |
| Polarization | ±45° |
| Horizontal Beamwidth | 90±10° |
| Vertical Beamwidth | 25±5° |
| F/B | >16dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N-K |
| Dimension | 1500*410*135mm |
| Radome material | UPVC |
| Weight | 18.1Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 60m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
PORT-1 +45
PORT-2 -45
2.2 Total Efficiency & Gain:
|
Port 1 |
|
Port 2 |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
380 |
9.5 |
380 |
8.9 |
|
|
385 |
9.6 |
385 |
9.0 |
|
|
390 |
9.6 |
390 |
9.0 |
|
|
395 |
9.6 |
395 |
9.0 |
|
|
400 |
9.6 |
400 |
9.2 |
|
|
405 |
9.8 |
405 |
9.6 |
|
|
410 |
10.2 |
410 |
10.0 |
|
|
415 |
10.4 |
415 |
10.2 |
|
|
420 |
10.7 |
420 |
10.4 |
|
|
425 |
11.0 |
425 |
10.6 |
|
|
430 |
10.9 |
430 |
10.6 |
|
|
435 |
11.2 |
435 |
10.8 |
|
|
440 |
11.3 |
440 |
11.1 |
|
|
445 |
11.4 |
445 |
11.1 |
|
|
450 |
11.6 |
450 |
11.4 |
|
2.3 Radiation Pattern
| Port1(+45) | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 380MHz | |
|
|
| 415MHz | |
|
|
| 450MHz | |
|
|
| Port2(-45) | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 380MHz | |
|
|
| 415MHz | |
|
|
| 450MHz | |
|
|
