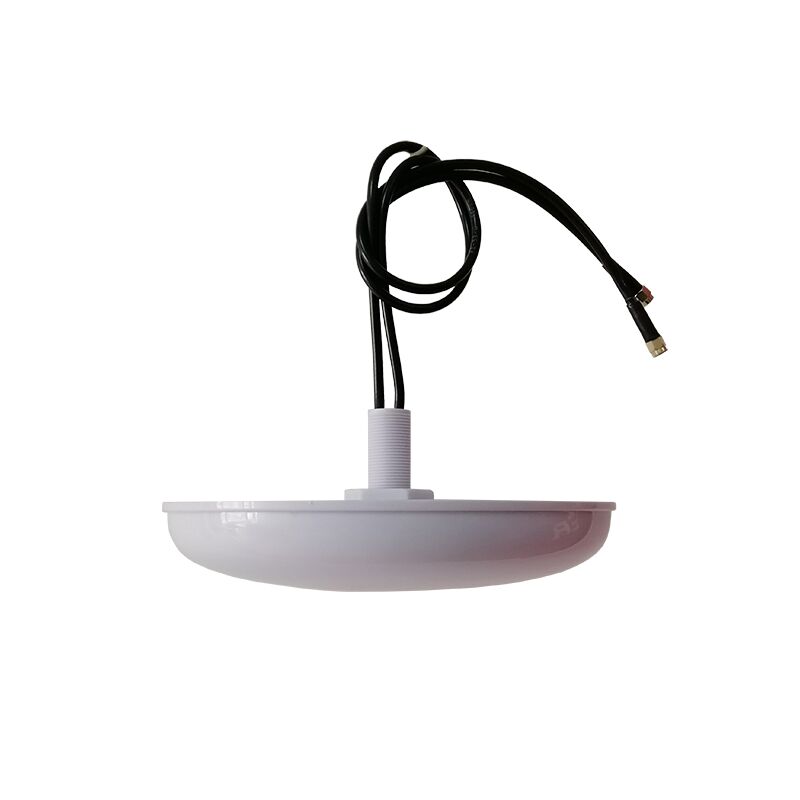

4G5G 698-960/1710-5000MHz full-band omnidirectional indoor ceiling-mounted antenna
Product Details
4G5G indoor ceiling antenna
,full-band omnidirectional antenna
,698-5000MHz ceiling-mounted antenna
4G5G 698-960/1710-5000MHz full-band omnidirectional indoor ceiling-mounted antenna
1. Specification
| A. Electrical Characteristics | ||
| Port | Port 1 | Port 2 |
| Frequency | 600-960/1510-5000MHz | 600-960/1510-5000MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <3.0 | <3.0 |
| Gain | 3/5dBi | 3/5dBi |
| Efficiency | ≈75/60% | ≈75/60% |
| Polarization | Linear | |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | RG58 L=500mm 2*SMA-J | |
| Dimension | Φ220*40mm | |
| Weight | 0.35Kg | |
| Radome material | ABS | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR
Port 1
Port 2
2.2 Total Efficiency & Gain:
|
Port 1 |
|||||
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
698 |
0.4 |
54.0 |
1710 |
4.4 |
80.8 |
|
720 |
2.0 |
62.3 |
1800 |
3.9 |
78.1 |
|
740 |
4.2 |
75.0 |
1900 |
3.7 |
82.9 |
|
760 |
4.8 |
87.4 |
2000 |
4.0 |
83.3 |
|
780 |
4.4 |
87.8 |
2100 |
2.8 |
72.0 |
|
800 |
3.6 |
75.5 |
2200 |
3.4 |
70.8 |
|
820 |
4.3 |
81.2 |
2300 |
2.8 |
62.5 |
|
840 |
4.3 |
77.4 |
2400 |
2.8 |
64.2 |
|
860 |
4.4 |
78.2 |
2500 |
4.5 |
69.4 |
|
880 |
4.2 |
83.7 |
2600 |
3.9 |
57.5 |
|
900 |
3.0 |
73.7 |
2700 |
4.0 |
60.4 |
|
920 |
3.2 |
73.0 |
2800 |
4.7 |
63.5 |
|
940 |
2.7 |
75.3 |
2900 |
5.0 |
55.5 |
|
960 |
2.8 |
75.4 |
3000 |
5.4 |
61.6 |
|
|
|
|
3100 |
5.5 |
64.9 |
|
|
|
|
3200 |
5.5 |
56.9 |
|
|
|
|
3300 |
6.7 |
58.5 |
|
|
|
|
3400 |
5.6 |
47.2 |
|
|
|
|
3500 |
5.2 |
46.1 |
|
|
|
|
3600 |
4.6 |
49.2 |
|
|
|
|
3700 |
3.0 |
47.8 |
|
|
|
|
3800 |
2.5 |
59.6 |
|
|
|
|
3900 |
3.8 |
71.1 |
|
|
|
|
4000 |
2.8 |
59.2 |
|
|
|
|
4100 |
2.8 |
64.2 |
|
|
|
|
4200 |
2.9 |
57.9 |
|
|
|
|
4300 |
3.3 |
52.8 |
|
|
|
|
4400 |
2.6 |
50.2 |
|
|
|
|
4500 |
2.6 |
50.2 |
|
|
|
|
4600 |
3.7 |
52.7 |
|
|
|
|
4700 |
2.3 |
39.8 |
|
|
|
|
4800 |
2.1 |
41.5 |
|
|
|
|
4900 |
3.6 |
53.3 |
|
|
|
|
5000 |
3.2 |
47.9 |
|
Port 2 |
|||||
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
698 |
0.3 |
49.3 |
1710 |
4.3 |
79.2 |
|
720 |
1.1 |
58.9 |
1800 |
3.7 |
67.8 |
|
740 |
2.4 |
68.5 |
1900 |
3.9 |
70.3 |
|
760 |
3.8 |
81.3 |
2000 |
3.5 |
74.4 |
|
780 |
3.9 |
82.3 |
2100 |
3.2 |
61.4 |
|
800 |
2.9 |
72.0 |
2200 |
3.4 |
56.9 |
|
820 |
3.4 |
77.0 |
2300 |
2.8 |
46.6 |
|
840 |
3.5 |
73.4 |
2400 |
3.5 |
51.8 |
|
860 |
3.7 |
71.3 |
2500 |
3.4 |
57.5 |
|
880 |
3.8 |
74.8 |
2600 |
2.9 |
54.1 |
|
900 |
1.6 |
67.4 |
2700 |
4.2 |
63.5 |
|
920 |
2.0 |
65.7 |
2800 |
4.9 |
65.5 |
|
940 |
2.8 |
71.1 |
2900 |
5.0 |
59.0 |
|
960 |
3.3 |
73.8 |
3000 |
5.3 |
59.9 |
|
|
|
|
3100 |
5.6 |
61.0 |
|
|
|
|
3200 |
5.5 |
61.2 |
|
|
|
|
3300 |
5.6 |
67.4 |
|
|
|
|
3400 |
5.7 |
69.9 |
|
|
|
|
3500 |
6.6 |
79.1 |
|
|
|
|
3600 |
5.9 |
72.1 |
|
|
|
|
3700 |
4.9 |
67.6 |
|
|
|
|
3800 |
4.5 |
73.0 |
|
|
|
|
3900 |
4.3 |
78.6 |
|
|
|
|
4000 |
2.8 |
69.2 |
|
|
|
|
4100 |
3.4 |
78.4 |
|
|
|
|
4200 |
4.3 |
78.2 |
|
|
|
|
4300 |
3.4 |
70.8 |
|
|
|
|
4400 |
3.3 |
72.4 |
|
|
|
|
4500 |
4.0 |
80.8 |
|
|
|
|
4600 |
3.3 |
74.0 |
|
|
|
|
4700 |
2.4 |
59.7 |
|
|
|
|
4800 |
3.0 |
65.1 |
|
|
|
|
4900 |
4.3 |
69.0 |
|
|
|
|
5000 |
4.0 |
63.3 |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 698MHz | |
|
|
| 800MHz | |
|
|
| 960MHz | |
|
|
| 1710MHz | |
|
|
| 3300MHz | |
|
|
| 5000MHz | |
|
|
-
