SMA female 20-512M Handheld device soft antenna
SMA female 20-512M Handheld device soft antenna
SMA female 20-512M Handheld device soft antenna
SMA female 20-512M Handheld device soft antenna
SMA female 20-512M Handheld device soft antenna
SMA female 20-512M Handheld device soft antenna

SMA female 20-512M Handheld device soft antenna

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11855-B

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Frequency:
20-512MHz
VSWR:
<2.0
Peak Gain:
0dBi
Impedance:
50
Frequency:
20-512MHz
VSWR:
<2.0
Peak Gain:
0dBi
Impedance:
50
Description

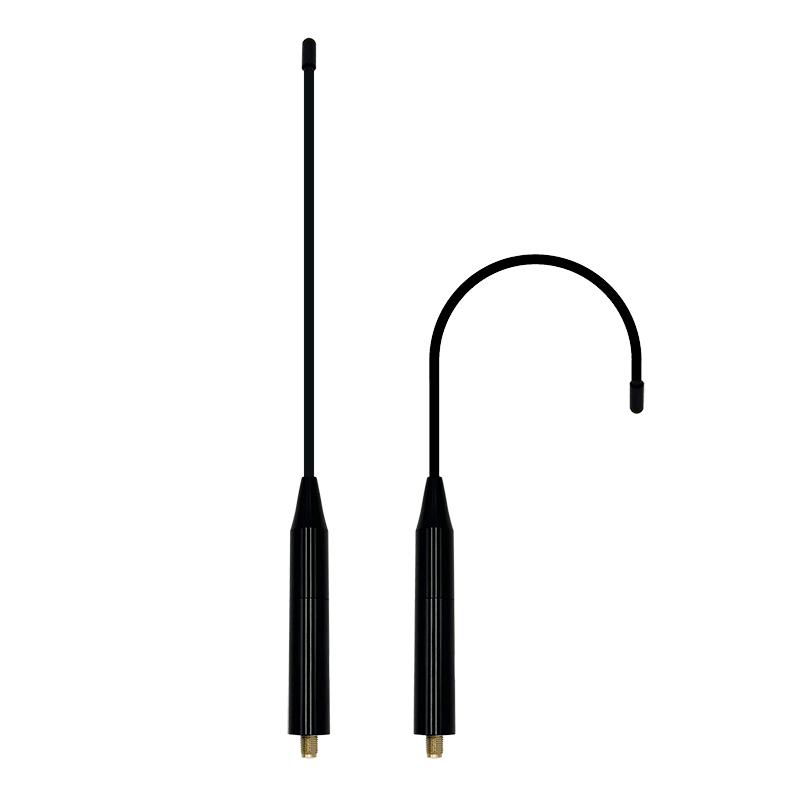

SMA female 20-512M Handheld device soft antenna

1. Specification

A. Electrical Characteristics
Frequency 20-512MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 1dBi
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 46-98°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA-K connector
Dimension Φ15*300mm
Weight 0.05Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

SMA female 20-512M Handheld device soft antenna 0



2.2  Total Efficiency & Gain:

Frequency (MHz) 20 50 100 150 200 250 300 350 400 450 500
Gain (dBi) -1.9 -1.7 -2.3 -2.2 -1.8 -2.1 -2.0 -0.1 -1.4 -3.0 -2.8
Efficiency (%) 11.1 24.6 27.9 32.3 27.5 27.0 23.1 26.5 32.2 31.4 30.6
SMA female 20-512M Handheld device soft antenna 1


2.3 Radiation Pattern

  3D 2D-Horizontal 2D-Vertical
100MHz SMA female 20-512M Handheld device soft antenna 2 SMA female 20-512M Handheld device soft antenna 3 SMA female 20-512M Handheld device soft antenna 4
300MHz SMA female 20-512M Handheld device soft antenna 5 SMA female 20-512M Handheld device soft antenna 6 SMA female 20-512M Handheld device soft antenna 7
500MHz SMA female 20-512M Handheld device soft antenna 8 SMA female 20-512M Handheld device soft antenna 9 SMA female 20-512M Handheld device soft antenna 10
