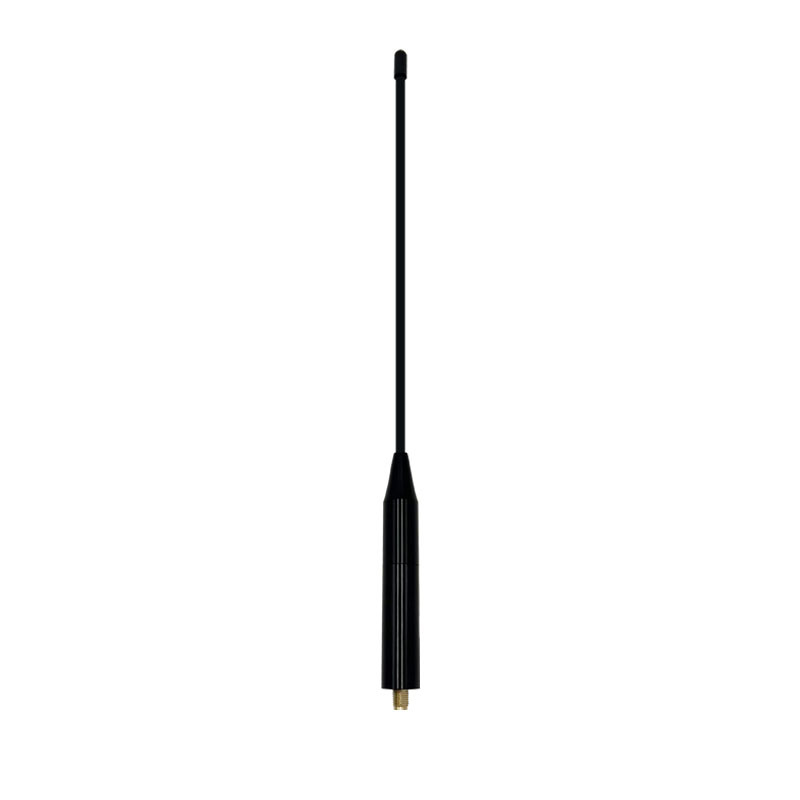

SMA female 300-1500M Handheld device soft antenna
SMA female 300-1500M Handheld device soft antenna
SMA female 300-1500M Handheld device soft antenna
SMA female 300-1500M Handheld device soft antenna
SMA female 300-1500M Handheld device soft antenna
SMA female 300-1500M Handheld device soft antenna

SMA female 300-1500M Handheld device soft antenna

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11875-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Frequency:
300-1500MHz
VSWR:
<2.0
Peak Gain:
1dBi
Impedance:
50
Frequency:
300-1500MHz
VSWR:
<2.0
Peak Gain:
1dBi
Impedance:
50
Description
SMA female 300-1500M Handheld device soft antenna

1. Specification

A. Electrical Characteristics
Frequency 300-1500MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 1dBi
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 17-76°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Dimension Φ15*300mm
Weight 0.05Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

SMA female 300-1500M Handheld device soft antenna 0



2.2  Total Efficiency & Gain:

频率(MHz) 增益(dBi) 效率(%)
300 -3.3 21.4
350 -2.8 21.7
400 -1.6 30.6
450 -1.7 32.4
500 -2.0 32.2
550 -3.8 24.9
600 -2.6 27.3
650 -2.6 24.6
700 -1.4 23.8
750 0.8 33.0
800 1.3 36.1
850 1.3 42.5
900 0.3 39.4
950 0.8 39.0
1000 1.4 41.0
1050 1.4 44.6
1100 0.4 46.8
1150 -0.2 37.8
1200 -3.5 16.5
1250 -3.5 16.1
1300 -3.4 13.1
1350 -4.3 12.0
1400 -2.4 17.4
1450 -1.5 21.2
1500 -1.2 27.1


2.3 Radiation Pattern

  3D 2D-Horizontal 2D-Vertical
300MHz SMA female 300-1500M Handheld device soft antenna 1 SMA female 300-1500M Handheld device soft antenna 2 SMA female 300-1500M Handheld device soft antenna 3
900MHz SMA female 300-1500M Handheld device soft antenna 4 SMA female 300-1500M Handheld device soft antenna 5 SMA female 300-1500M Handheld device soft antenna 6
1500MHz SMA female 300-1500M Handheld device soft antenna 7 SMA female 300-1500M Handheld device soft antenna 8 SMA female 300-1500M Handheld device soft antenna 9
