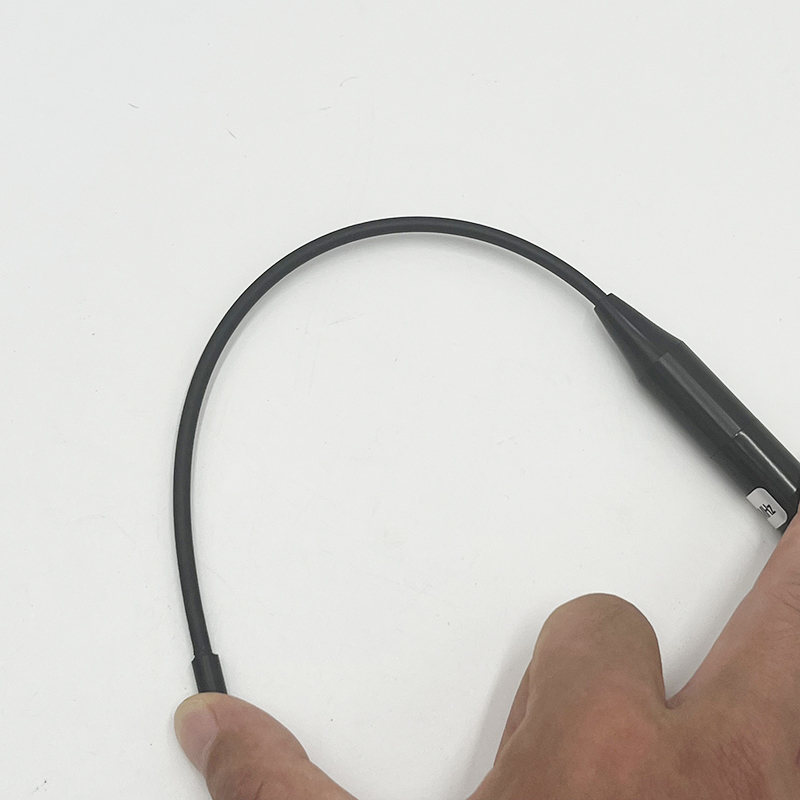

SMA male 433M walkie-talkie soft antenna
SMA male 433M walkie-talkie soft antenna
SMA male 433M walkie-talkie soft antenna
SMA male 433M walkie-talkie soft antenna
SMA male 433M walkie-talkie soft antenna
SMA male 433M walkie-talkie soft antenna

SMA male 433M walkie-talkie soft antenna

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11862-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Frequency:
433MHz
VSWR:
<2.0
Peak Gain:
1dBi
Impedance:
50
Frequency:
433MHz
VSWR:
<2.0
Peak Gain:
1dBi
Impedance:
50
Description
SMA male 433M walkie-talkie soft antenna

1. Specification

A. Electrical Characteristics
Frequency 433MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 1dBi
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 55-60°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Dimension Φ12*290mm
Weight 0.05Kg
Antenna material Copper Rod
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

SMA male 433M walkie-talkie soft antenna 0



2.2  Total Efficiency & Gain:

Frequency (MHz) 428 429 430 431 432 433 434 435 436 437 438
Gain (dBi) 0.4 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.5
Efficiency (%) 50.7 50.7 50.9 51.1 51.6 52.1 52.6 52.9 53.2 53.2 53.0

SMA male 433M walkie-talkie soft antenna 1

2.3 Radiation Pattern

  3D 2D-Horizontal 2D-Vertical
430MHz SMA male 433M walkie-talkie soft antenna 2 SMA male 433M walkie-talkie soft antenna 3 SMA male 433M walkie-talkie soft antenna 4
433MHz SMA male 433M walkie-talkie soft antenna 5 SMA male 433M walkie-talkie soft antenna 6 SMA male 433M walkie-talkie soft antenna 7
436MHz SMA male 433M walkie-talkie soft antenna 8 SMA male 433M walkie-talkie soft antenna 9 SMA male 433M walkie-talkie soft antenna 10
