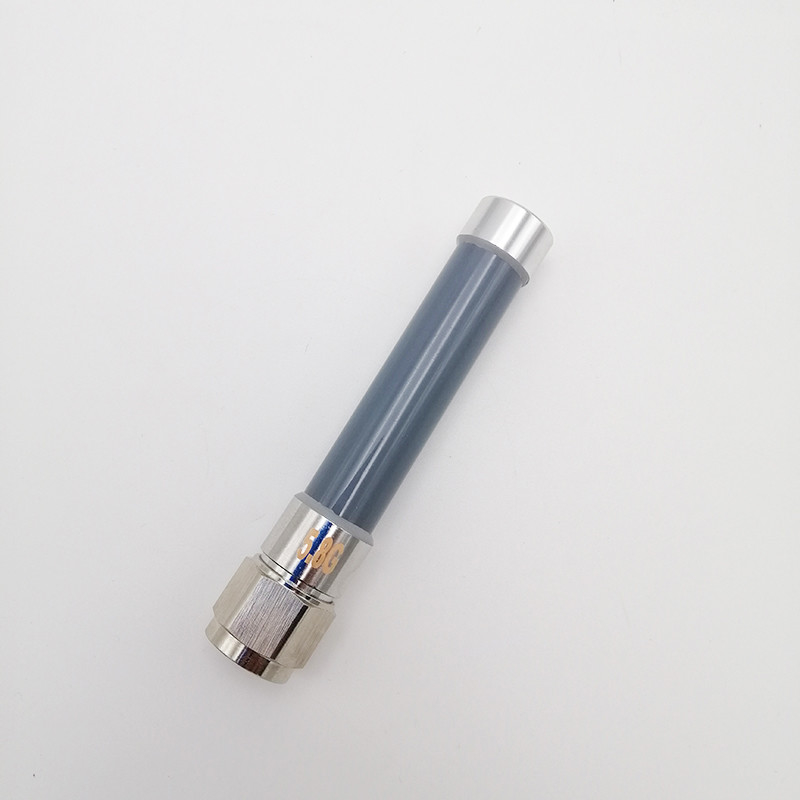

5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm
5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm
5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm
5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm
5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm

5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11129-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
3dBi
Impedance:
50
Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
3dBi
Impedance:
50
Description
5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm

1. Specification

A. Electrical Characteristics

Frequency 5150-5850MHz
VSWR < 2.0
Efficiency ≈80%
Peak Gain 3dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 45±10°
T90(H) roundness ±2
Max Power 50W
B. Material & Mechanical
Connector Type N-J
Dimension Φ16*100±3mm
Weight 0.11Kg
Radome material Fiberglass (Grey)

C. Environmental

Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 0

2.2  Total Efficiency & Gain:

Frequency(MHz) 5150 5200 5250 5300 5350 5400 5450 5500 5550 5600 5650 5700 5750 5800 5850
Gain (dBi) 2.3 2.6 2.8 2.9 2.7 2.5 2.5 2.3 1.9 2.0 2.2 2.9 2.9 3.5 3.2
Efficiency (%) 74.4 79.7 83.5 83.8 83.3 80.6 80.9 80.0 78.1 75.9 74.8 82.2 79.2 83.2 75.7

5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 1



2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
5150MHz 5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 2 5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 3 5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 4
5550MHz 5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 5 5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 6 5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 7
5850MHz 5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 8 5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 9 5.8G 5150-5850M 3dBi Wifi Omni Fiberglass Antenna 16x100mm 10
