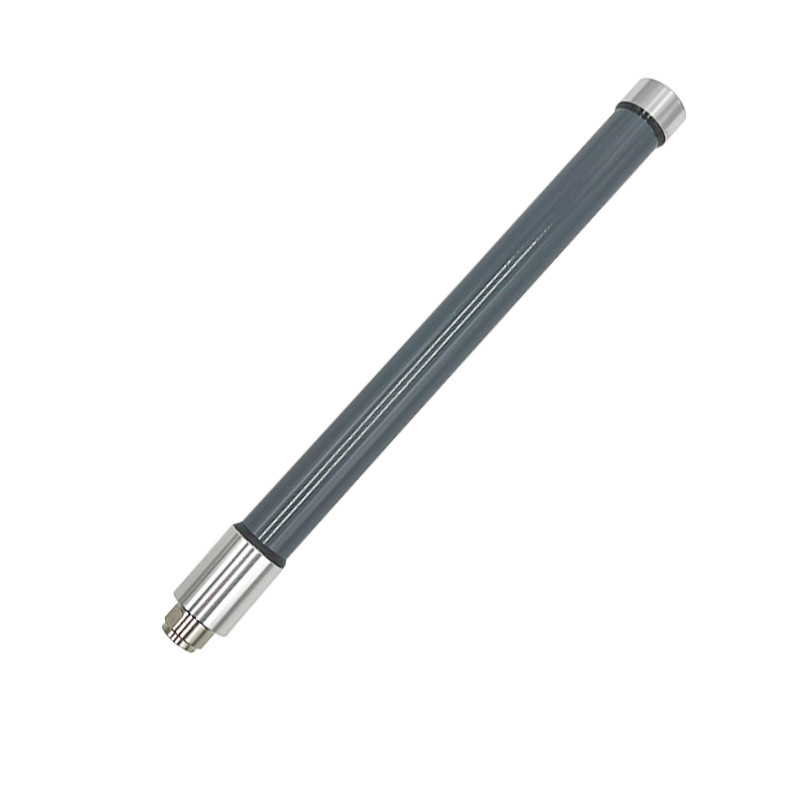

1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional
1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional
1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional
1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional
1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional

1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10327-B

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

16x200mm Omnidirectional Antenna

,

433MHz Omnidirectional Antenna

,

SMA-J Omnidirectional Antenna

Frequency:
433MHz
VSWR:
<2.0
Peak Gain:
1dBi
Impedance:
50
Frequency:
433MHz
VSWR:
<2.0
Peak Gain:
1dBi
Impedance:
50
Description
1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional

1. Specification

A. Electrical Characteristics


Frequency 433MHz
VSWR < 2.0
Efficiency ≈50%
Peak Gain 1dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 50±5°
T90(H) roundness ±2
Max Power 50W
B. Material & Mechanical
Connector Type SMA-J
Dimension Φ16*200±5mm
Weight 0.06Kg
Radome material Fiberglass (grey)

C. Environmental


Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR

1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 0


2.2  Total Efficiency & Gain:

Frequency(MHz) 430.0 431.0 432.0 433.0 434.0 435.0
Gain (dBi) 0.39 0.42 0.52 0.65 0.77 0.87
Efficiency (%) 33.86 34.18 34.95 36.03 37.16 38.04


1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 1


2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
430MHz 1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 2 1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 3 1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 4
433MHz 1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 5 1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 6 1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 7
435MHz 1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 8 1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 9 1dBi Peak Gain 433MHz Fiberglass Antenna SMA-J 433M 16x200mm Omnidirectional 10
