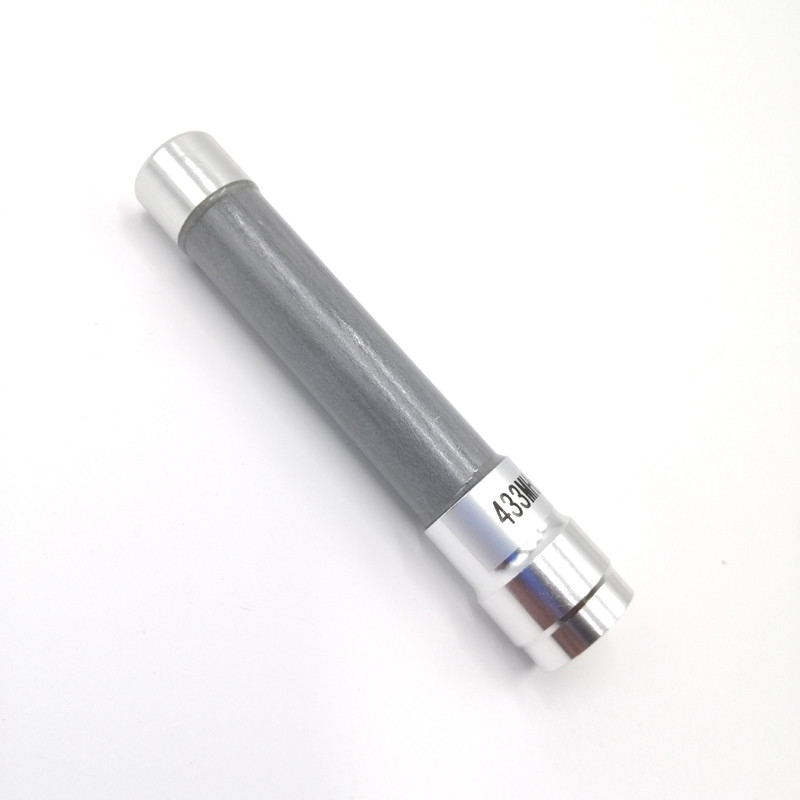

16x100mm 433MHz VSWR 2.0 Fiberglass Antenna For Long Distance Communication
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10312-B
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
500 per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 433MHz VSWR < 2.0 Efficiency ≈50% Peak Gain -0.5dBi Impedance 50 Ohm Polarization Linear Horizontal Beamwidth 360° Vertical Beamwidth 70±10° T90(H) roundness ±2 Max Power 50W B. Material & Mechanical Connector Type N-J Dimension Φ16*100±5mm ...
Product Details
Highlight:
Long Distance Communication Fiberglass Antenna
,16x100mm Fiberglass Antenna
,433MHz Fiberglass Antenna
Frequency:
433MHz
VSWR:
<2.0
Peak Gain:
-0.5dBi
Impedance:
50
Product Description
1. Specification
|
A. Electrical Characteristics
|
||
| Frequency | 433MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈50% | |
| Peak Gain | -0.5dBi | |
| Impedance | 50 Ohm | |
| Polarization | Linear | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 70±10° | |
| T90(H) roundness | ±2 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-J | |
| Dimension | Φ16*100±5mm | |
| Weight | 0.06Kg | |
| Radome material | Fiberglass (grey) | |
|
C. Environmental
|
||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 430.0 | 431.0 | 432.0 | 433.0 | 434.0 | 435.0 |
| Gain (dBi) | -0.69 | -0.69 | -0.68 | -0.67 | -0.68 | -0.70 |
| Efficiency (%) | 42.75 | 42.73 | 42.76 | 42.75 | 42.64 | 42.38 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 430MHz | |
|
|
| 433MHz | |
|
|
| 435MHz | |
|
|
