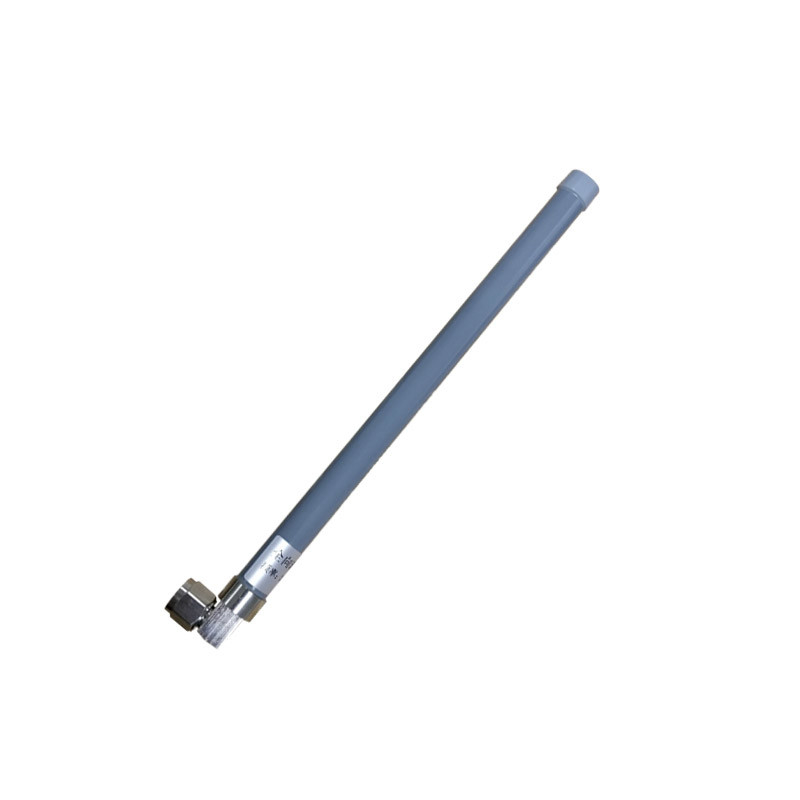

470-510M 3dbi Omnidirectional Fiberglass Reinforced Plastic Antenna 18.5x400mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-11741-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
500 per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 470-510MHz VSWR < 2.0 Efficiency ≈86% Peak Gain 3dBi Impedance 50 Ohm Polarization Linear Horizontal Beamwidth 360° Vertical Beamwidth 60±10° T90(H) roundness ±2 Max Power 50W B. Material & Mechanical Connector Type N-JW Dimension Φ18.5*400...
Product Details
Highlight:
470-510M fiberglass reinforced plastic antenna
,18.5x400mm fiberglass reinforced plastic antenna
,3dbi fiberglass reinforced plastic antenna
Frequency:
470-510MHz
VSWR:
<2.0
Peak Gain:
8dBi
Impedance:
50
Product Description
1. Specification
|
A. Electrical Characteristics
|
||
| Frequency | 470-510MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈86% | |
| Peak Gain | 3dBi | |
| Impedance | 50 Ohm | |
| Polarization | Linear | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 60±10° | |
| T90(H) roundness | ±2 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-JW | |
| Dimension | Φ18.5*400±5mm | |
| Weight | 0.19Kg | |
| Radome material | Fiberglass (grey) | |
|
C. Environmental
|
||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 470.0 | 475.0 | 480.0 | 485.0 | 490.0 | 495.0 | 500.0 | 505.0 | 510.0 |
| Gain (dBi) | 2.60 | 2.93 | 3.18 | 3.45 | 3.35 | 3.16 | 2.93 | 2.76 | 2.61 |
| Efficiency (%) | 71.74 | 83.59 | 89.00 | 90.00 | 91.00 | 90.00 | 89.00 | 87.00 | 86.00 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 470MHz | |
|
|
| 490MHz | |
|
|
| 510MHz | |
|
|
