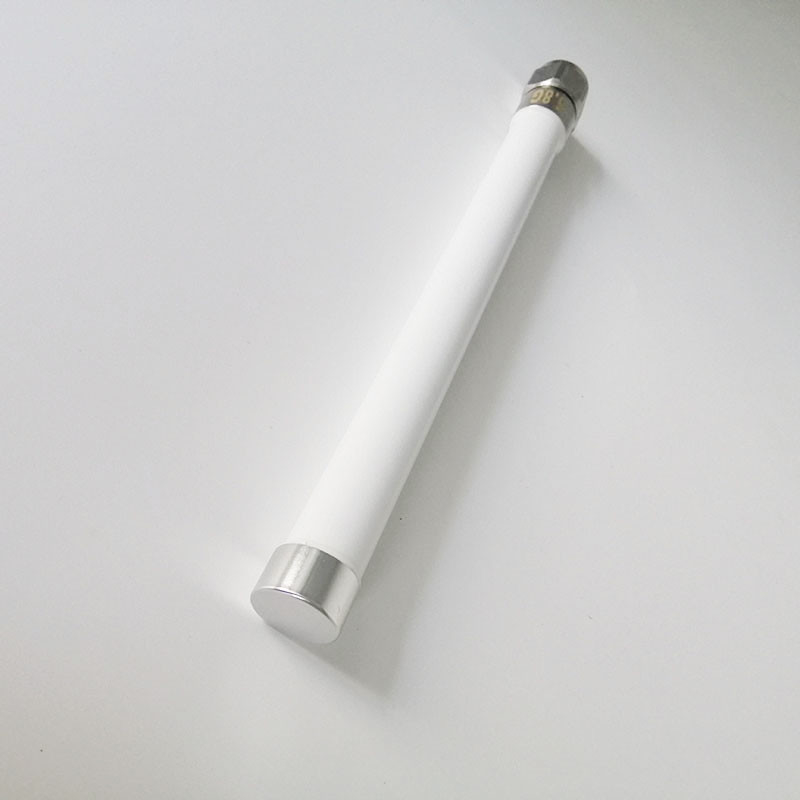

5.8G Omnidirectional WiFi Antenna 5dBi Fiberglass Antenna 5150-5850MHz 20x200mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-11680-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
500 per day
Product Summary
1. Specification A. Electrical Characteristics Frequency 5150-5850MHz VSWR < 2.0 Efficiency ≈77% Peak Gain 5dBi Impedance 50 Ohm Polarization Linear Horizontal Beamwidth 360° Vertical Beamwidth 30±10° T90(H) roundness ±1 Max Power 50W B. Material & Mechanical Connector Type N-J Dimension Φ16*200±5mm ...
Product Details
Highlight:
5dBi Omnidirectional WiFi Antenna
,5.8G Omnidirectional WiFi Antenna
,5150-5850MHz Omnidirectional WiFi Antenna
Frequency:
5150-5850MHz
VSWR:
<2.0
Peak Gain:
5dBi
Impedance:
50
Product Description
1. Specification
|
A. Electrical Characteristics
|
||
| Frequency | 5150-5850MHz | |
| VSWR | < 2.0 | |
| Efficiency | ≈77% | |
| Peak Gain | 5dBi | |
| Impedance | 50 Ohm | |
| Polarization | Linear | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 30±10° | |
| T90(H) roundness | ±1 | |
| Max Power | 50W | |
| B. Material & Mechanical | ||
| Connector Type | N-J | |
| Dimension | Φ16*200±5mm | |
| Weight | 0.1Kg | |
| Radome material | Fiberglass (Grey) | |
|
C. Environmental
|
||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 5150 | 5200 | 5250 | 5300 | 5350 | 5400 | 5450 | 5500 | 5550 | 5600 | 5650 | 5700 | 5750 | 5800 | 5850 |
| Gain (dBi) | 5.0 | 4.6 | 5.3 | 5.7 | 6.0 | 6.4 | 6.1 | 6.3 | 6.2 | 5.6 | 5.8 | 4.9 | 3.9 | 3.4 | 1.9 |
| Efficiency (%) | 70.4 | 78.8 | 78.9 | 78.5 | 78.5 | 82.4 | 78.0 | 84.2 | 82.3 | 75.6 | 82.9 | 75.6 | 71.0 | 74.6 | 57.7 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 5150MHz | |
|
|
| 5500MHz | |
|
|
| 5850MHz | |
|
|
