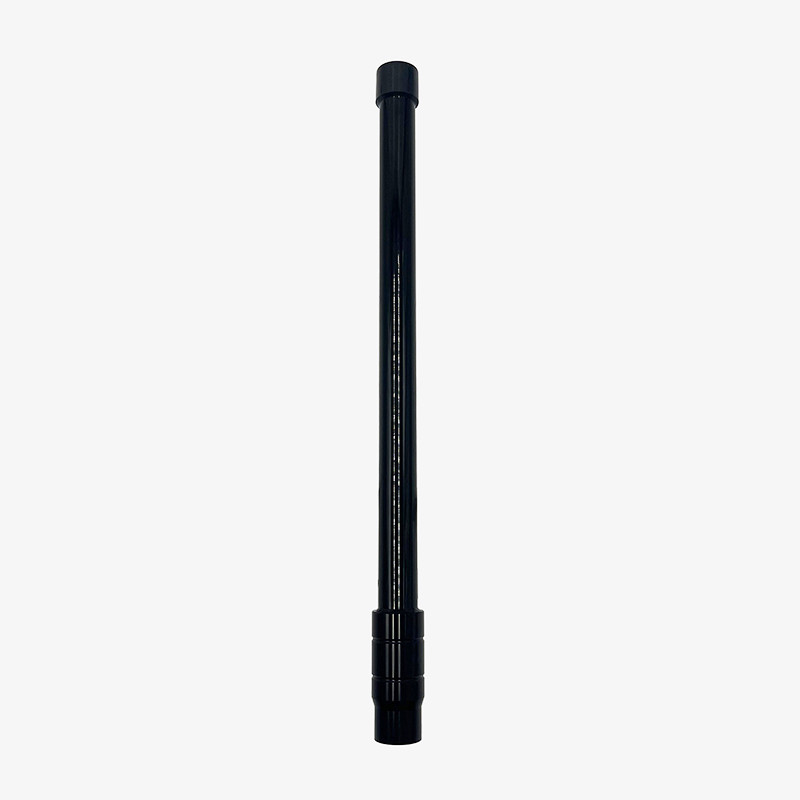

5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm
5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm
5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm
5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm
5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm

5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11742-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

Fiberglass Omnidirectional WiFi Antenna

,

20x350mm Omnidirectional WiFi Antenna

,

5.8G Omnidirectional WiFi Antenna

Frequency:
5720-5850MHz
VSWR:
<2.0
Peak Gain:
8dBi
Impedance:
50
Frequency:
5720-5850MHz
VSWR:
<2.0
Peak Gain:
8dBi
Impedance:
50
Description
5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm

1. Specification

A. Electrical Characteristics


Frequency 5720-5850MHz
VSWR < 2.0
Efficiency ≈70%
Peak Gain 8dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 15±5°
T90(H) roundness ±1
Max Power 100W
B. Material & Mechanical
Connector Type N-J
Dimension Φ20*350±5mm
Weight 0.17Kg
Radome material Fiberglass (black)

C. Environmental


Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR

5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 0


2.2  Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency(%)
5720 6.7 71.2
5740 6.6 66.0
5760 7.1 72.0
5780 7.0 66.5
5800 7.6 74.5
5820 7.3 66.7
5840 7.5 67.2
5850 7.5 65.0


2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
5720MHz 5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 1 5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 2 5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 3
5800MHz 5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 4 5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 5 5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 6
5850MHz 5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 7 5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 8 5.8G Omnidirectional WiFi Antenna 8dBi Fiberglass Antenna 5720-5850MHz 20x350mm 9
