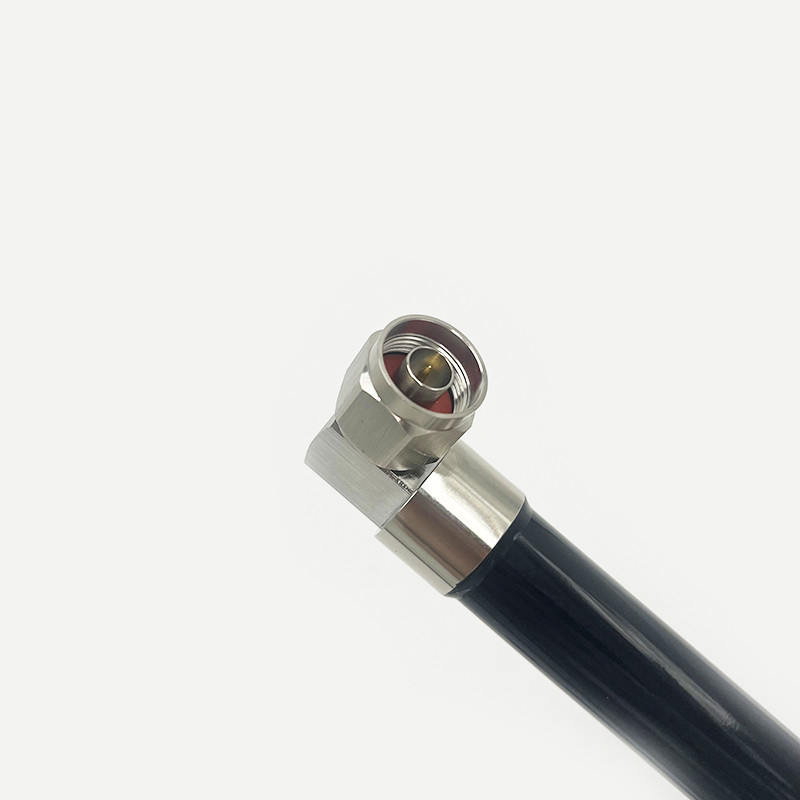

860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm

Name: 860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10862-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10862-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              860-930M outdoor omnidirectional antenna, 2dBi outdoor omnidirectional antenna, 20x150mm outdoor omnidirectional antenna


Frequency:	860-930M	VSWR:	<2
Peak Gain:	2dBi	Impedance:	50

Frequency:	860-930M
VSWR:	<2
Peak Gain:	2dBi
Impedance:	50

Description

860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm

1. Specification

A. Electrical Characteristics
Frequency		860-930MHz
VSWR		< 2.0
Efficiency		≈52%
Peak Gain		1.4-2dBi
Impedance		50 Ohm
Polarization		Linear
Horizontal Beamwidth		360°
Vertical Beamwidth		29-48°
T90(H) roundness		±5.5
Max Power		50W
B. Material & Mechanical
Connector Type	N-JW
Dimension	Φ20*150±5mm
Weight	0.11Kg
Radome material	Fiberglass (black)
C. Environmental
Operation Temperature	- 45˚C ~ +85 ˚C
Storage Temperature	- 45˚C ~ +85 ˚C
Rated Wind Velocity	36.9m/s
Lighting Protection	Dc grounding

2. Antenna - S Parameter Test Data
2.1 VSWR
860-930M 2dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	860	870	880	890	900	910	920	930
Gain (dBi)	1.7	1.9	1.7	1.4	1.4	1.6	1.6	1.8
Efficiency (%)	53.9	55.8	53.4	51.2	49.5	50.1	49.8	51.1

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
860MHz
900MHz
930MHz
