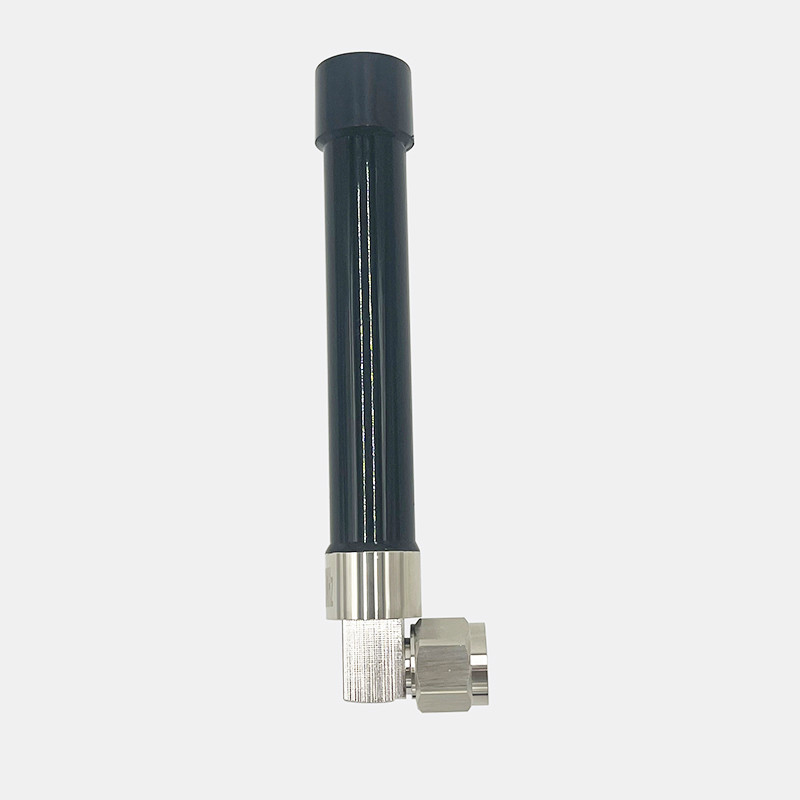

4G 3dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm

Name: 4G 3dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10604-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10604-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              4 g omnidirectional outdoor antenna, 3dBi omni antenna outdoor, 20x150mm omni antenna outdoor


Frequency:	800-960/1710-2700M	VSWR:	<2
Peak Gain:	3dBi	Impedance:	50

Frequency:	800-960/1710-2700M
VSWR:	<2
Peak Gain:	3dBi
Impedance:	50

Description

4G 3dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm

N-JW 3G4G LTE GSM NB-Iot GPRS ATU DTU Omnidirectional 3dBi Outdoor base station gateway Fiberglass waterproof antenna

1. Specification

A. Electrical Characteristics
Frequency	800-960MHz	1710-2700MHz
Impedance	50 Ohm	50 Ohm
S.W.R.	<2	<3.5
Gain	2dBi	3dBi
Efficiency	≈58%	≈62%
Polarization	Linear	Linear
Horizontal Beamwidth	360°	360°
Vertical Beamwidth	50±10°	45±10°
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N -JW
Dimension	Φ20*150mm
Weight	0.11Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85˚C
Storage Temperature	- 40 ˚C ~ + 85˚C

2. Antenna - S Parameter Test Data
2.1 VSWR
4G 3dBi Omnidirectional Fiberglass Reinforced Plastic Waterproof Antenna N-JW Φ20x150mm 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)	Efficiency(%)
820	1.9	57.4
840	2.2	60.1
860	2.3	59.3
880	2.1	58.9
900	1.8	54.5
920	1.9	54.2
940	2.4	56.1
960	2.5	57.9

1710	2.4	60.7
1800	3.0	65.8
1900	2.4	67.6
2000	1.8	67.0
2100	1.5	58.0
2200	2.1	61.2
2300	3.5	56.5
2400	3.5	57.6
2500	3.9	62.5
2600	3.4	62.6
2700	3.5	60.2

2.3 Radiation Pattern

	3D	2D-Horizontal	2D-Vertical
800MHz
880MHz
960MHz

	3D	2D-Horizontal	2D-Vertical
1710MHz
2220MHz
2700MHz
