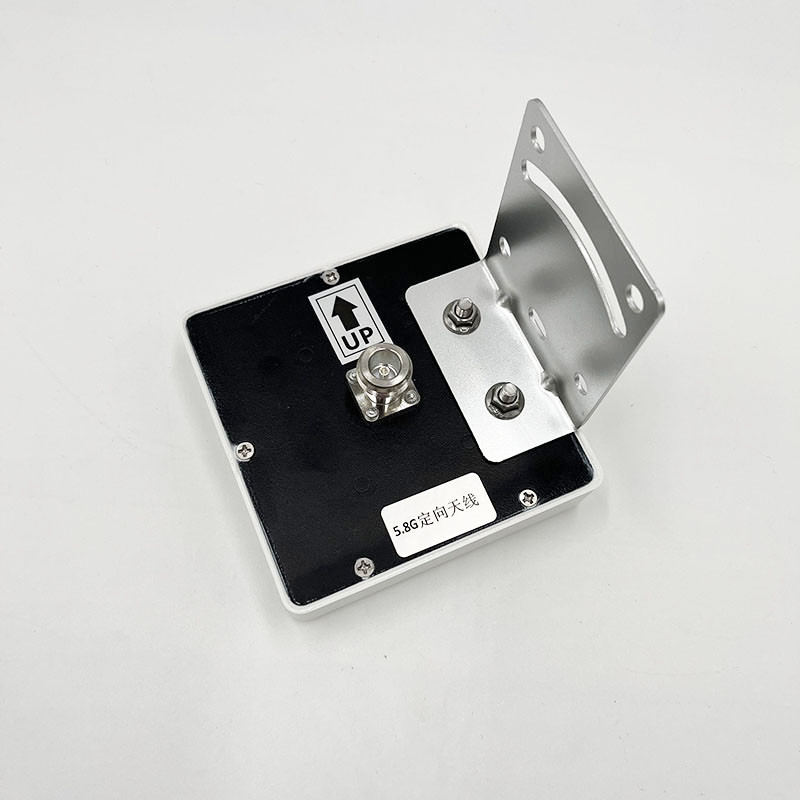

5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna

Name: 5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10484-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10484-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              15dBi Wall Mounted Directional Antenna, 5150-5850MHz Wall Mounted Directional Antenna, 5.8G Wall Mounted Directional Antenna


Frequency:	5150-5850MHz	VSWR:	<2.0
Peak Gain:	15dBi	Impedance:	50

Frequency:	5150-5850MHz
VSWR:	<2.0
Peak Gain:	15dBi
Impedance:	50

Description

5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna

1. Specification

A. Electrical Characteristics
Frequency	5150-5850MHz
S.W.R.	<= 2.0
Antenna Gain	15dBi
Polarization	Vertical
Horizontal Beamwidth	40±5°
Vertical Beamwidth	40±5°
F/B	>20dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	979723mm
Radome material	ABS
Weight	0.11Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
5150	13.6
5200	13.8
5250	14.1
5300	14.3
5350	14.5
5400	14.8
5450	14.9
5500	15.1
5550	15.5
5600	15.4
5650	15.4
5700	15.3
5750	15.5
5800	14.9
5850	14.9

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
5150MHz
5850MHz
