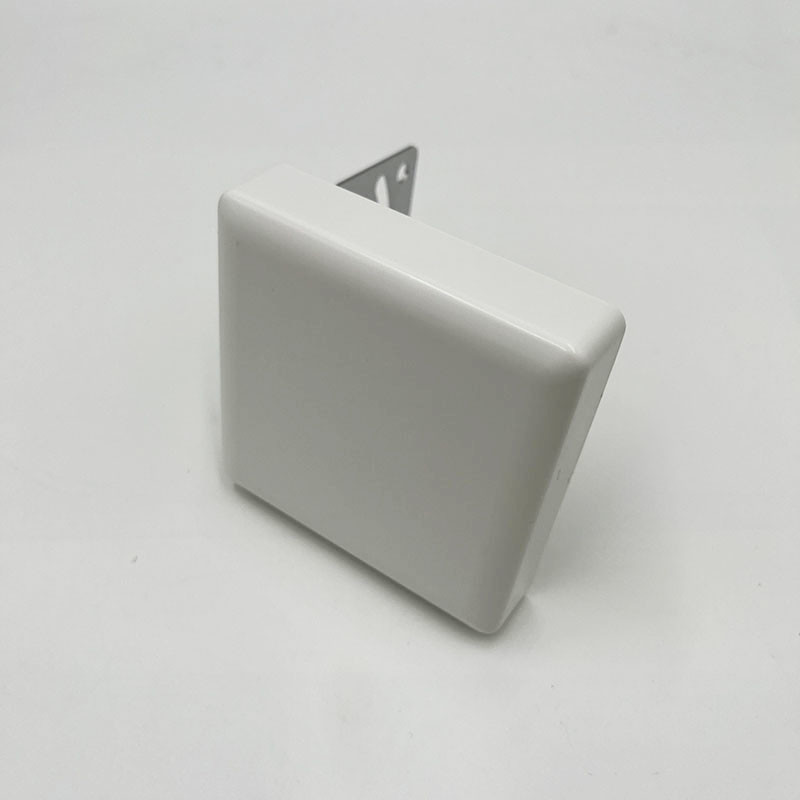

UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna

Name: UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10486-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10486-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 500 per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Single Polarization UWB CH2 Directional Antenna, 3.7-4.2G UWB CH2 Directional Antenna, 10dbi UWB CH2 Directional Antenna


Frequency:	3700-4200MHz	VSWR:	<2.0
Peak Gain:	10dBi	Impedance:	50

Frequency:	3700-4200MHz
VSWR:	<2.0
Peak Gain:	10dBi
Impedance:	50

Description

UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna

1. Specification

A. Electrical Characteristics
Frequency	3700-4200MHz
S.W.R.	<= 2.0
Antenna Gain	10dBi
Polarization	Vertical
Horizontal Beamwidth	70±5°
Vertical Beamwidth	65±10
F/B	>16dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	979723mm
Radome material	ABS
Weight	0.15Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
UWB CH2 3.7-4.2G 37700-4200M 10dbi Single Polarization Directional Antenna 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
3700	9.8
3750	9.7
3800	9.8
3850	9.9
3900	9.9
3950	9.9
4000	9.6
4050	9.8
4100	9.6
4150	9.3
4200	9.0

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
3700MHz
3900MHz
4200MHz
