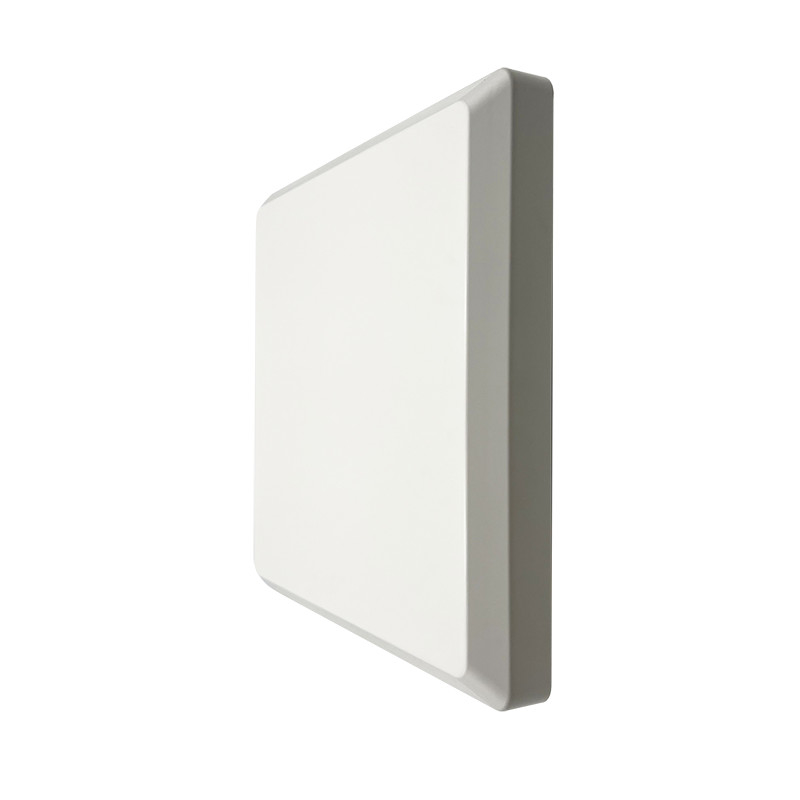

1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV

Name: 1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-11007-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-11007-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              1550M UAV directional antenna, 1.4G UAV directional antenna, 15dbi UAV directional antenna


Frequency:	1350-1550MHz	VSWR:	<2.0
Peak Gain:	15dBi	Impedance:	50

Frequency:	1350-1550MHz
VSWR:	<2.0
Peak Gain:	15dBi
Impedance:	50

Description

1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV

1. Specification

A. Electrical Characteristics
Frequency	1350-1550MHz
S.W.R.	<= 2.0
Antenna Gain	15dBi
Polarization	V
Horizontal Beamwidth	35±5°
Vertical Beamwidth	30±5°
F/B	>20dB
Impedance	50Ohm
Max. Power	100W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	39039050mm
Radome material	ABS
Weight	2.6Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
1.4G 1350-1550M 15dbi Omni Directional Outdoor Antenna Single Polarization UAV 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
1350	15.7
1375	15.8
1400	15.8
1425	15.5
1450	15.5
1475	15.3
1500	15.5
1525	15.2
1550	15.5

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
1350MHz
1450MHz
1550MHz
