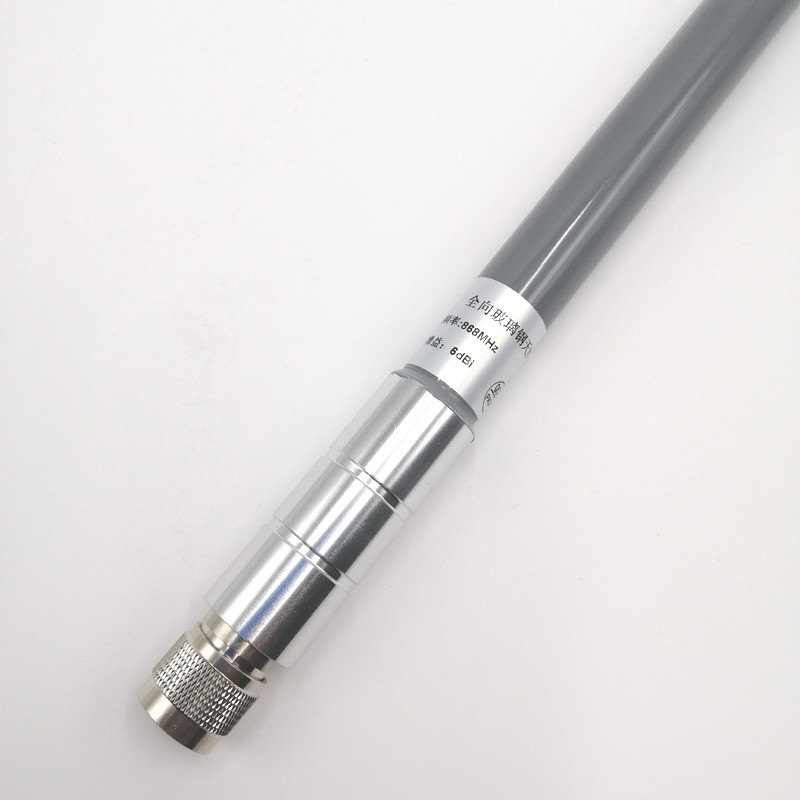

868M 5dbi External Directional Antenna Fiberglass Waterproof
868M 5dbi External Directional Antenna Fiberglass Waterproof
868M 5dbi External Directional Antenna Fiberglass Waterproof
868M 5dbi External Directional Antenna Fiberglass Waterproof
868M 5dbi External Directional Antenna Fiberglass Waterproof
868M 5dbi External Directional Antenna Fiberglass Waterproof

868M 5dbi External Directional Antenna Fiberglass Waterproof

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10088-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

5dbi external directional antenna

,

Fiberglass external directional antenna

,

868 m 5dbi outdoor omni directional antenna

Frequency:
868MHz
VSWR:
<2.0
Peak Gain:
5dBi
Impedance:
50
Frequency:
868MHz
VSWR:
<2.0
Peak Gain:
5dBi
Impedance:
50
Description
868M 5dbi External Directional Antenna Fiberglass Waterproof

Outdoor Waterproof Omnidirectional Antenna IP67 Fiberglass Antenna 824-894MHz Antenna 868MHZ Antenna 2dBi 20x250

1. Specification

A. Electrical Characteristics
Frequency 868MHz
Impedance 50 Ohm
S.W.R. <2
Gain5 dBi
Efficiency ≈91%
Horizontal Beamwidth 360°
Vertical Beamwidth 30±5°
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*600mm
Weight 0.25Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR

868M 5dbi External Directional Antenna Fiberglass Waterproof 0


2.2  Total Efficiency & Gain:

Frequency(MHz) 863.0 864.0 865.0 866.0 867.0 868.0 869.0 870.0 871.0 872.0 873.0
Gain (dBi) 4.9 4.9 4.9 4.9 4.9 4.9 4.9 4.9 5.0 5.0 5.0
Efficiency (%) 87.7 88.3 89.0 89.6 90.2 90.9 91.7 92.4 93.2 93.8 94.4

868M 5dbi External Directional Antenna Fiberglass Waterproof 1



2.3 Radiation Pattern



  3D 2D-Horizontal 2D-Vertical
863MHz 868M 5dbi External Directional Antenna Fiberglass Waterproof 2 868M 5dbi External Directional Antenna Fiberglass Waterproof 3 868M 5dbi External Directional Antenna Fiberglass Waterproof 4
868MHz 868M 5dbi External Directional Antenna Fiberglass Waterproof 5 868M 5dbi External Directional Antenna Fiberglass Waterproof 6 868M 5dbi External Directional Antenna Fiberglass Waterproof 7
873MHz 868M 5dbi External Directional Antenna Fiberglass Waterproof 8 868M 5dbi External Directional Antenna Fiberglass Waterproof 9 868M 5dbi External Directional Antenna Fiberglass Waterproof 10
