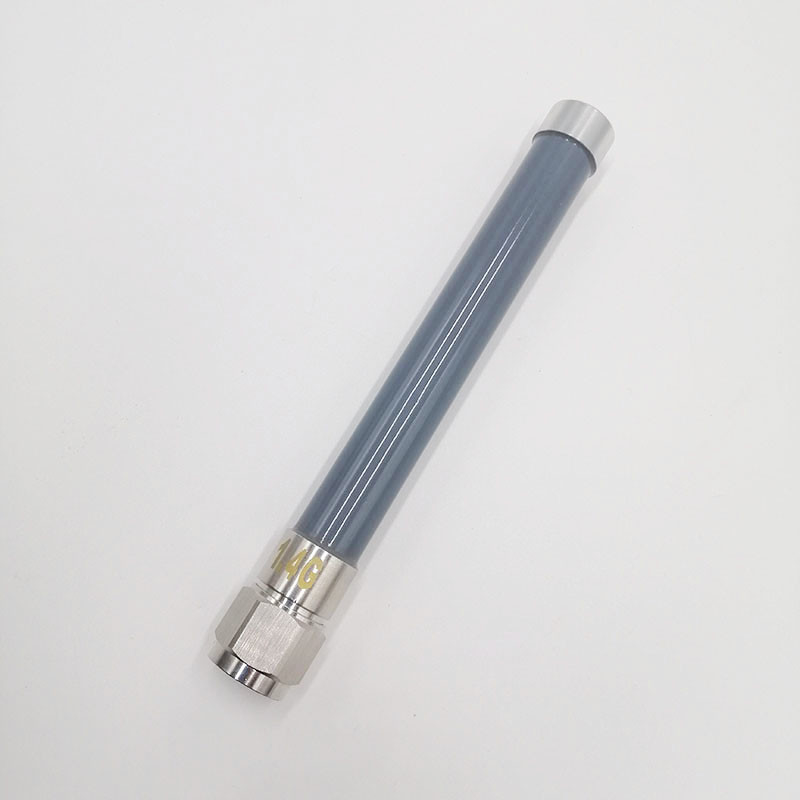

1.4G 2dbi Omnidirectional Fiberglass Waterproof Antenna
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10727-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
1K per day
Product Summary
2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna 1. Specification A. Electrical Characteristics Frequency 1350-1450MHz(Customizable others) Impedance 50 Ohm S.W.R.
Product Details
Highlight:
2dbi Omnidirectional Fiberglass Antenna
,1.4G Omnidirectional Fiberglass Antenna
,waterproof Omnidirectional Fiberglass Antenna
Frequency:
User Assignment
VSWR:
<2.0
Peak Gain:
2dBi
Impedance:
50
Product Description
2.1G2.4G3.5G5.8G Omnidirectional 150W drone jammer strike pressed FRP waterproof antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1350-1450MHz(Customizable others) |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 2dBi |
| Efficiency | ≈80% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 85±5° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N - male |
| Dimension | Φ26*150mm |
| Colour | Army black |
| Weight | 0.08Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 45 ˚C ~ + 85 ˚C |
| Storage Temperature | - 45 ˚C ~ + 85 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 1350.0 | 1360.0 | 1370.0 | 1380.0 | 1390.0 | 1400.0 | 1410.0 | 1420.0 | 1430.0 | 1440.0 | 1450.0 |
| Gain (dBi) | 1.6 | 1.5 | 1.8 | 1.6 | 1.5 | 1.4 | 1.6 | 1.8 | 2.0 | 1.9 | 1.3 |
| Efficiency (%) | 77.5 | 76.2 | 84.6 | 83.9 | 81.8 | 77.9 | 79.2 | 81.3 | 87.3 | 84.8 | 74.6 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1350MHz |
|
|
|
| 1400MHz | |
|
|
| 1450MHz | |
|
|
