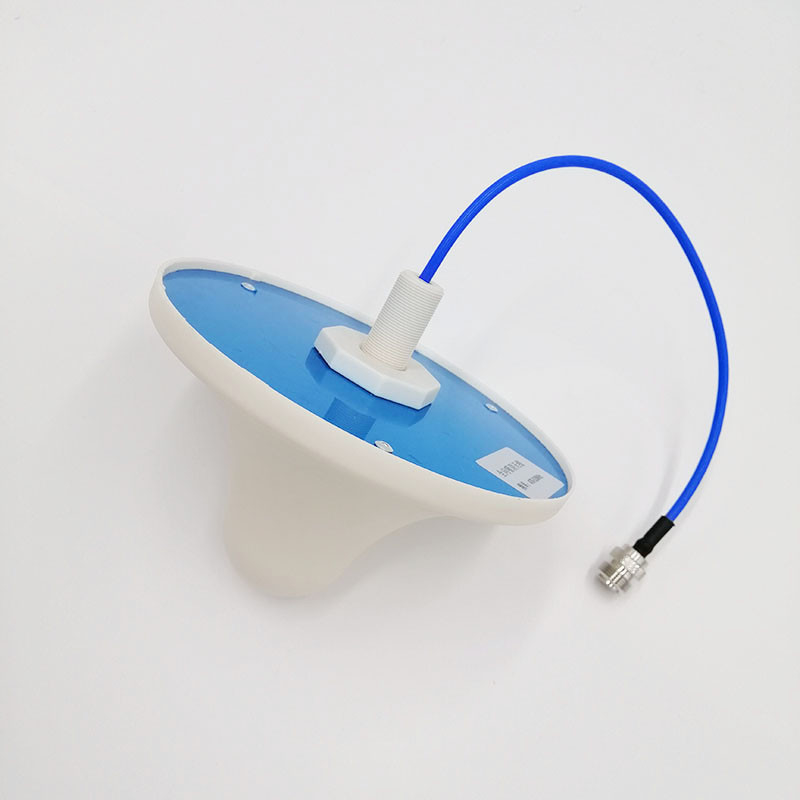

Lora 470-510M Ceiling Mount Antenna indoor
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10481-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
500 per day
Product Summary
Indoor Antenna External Antenna 4G LTE Antenna 3-5dBi SMA Connector UV Resistant 13x206 1. Specification A. Electrical Characteristics Frequency 470-510MHz S.W.R.
Product Details
Highlight:
indoor Lora ceiling mount antenna
,470-510M ceiling mount antenna
,470-510M antena indoor ceiling
Frequency:
470-510MHz
VSWR:
<2.0
Peak Gain:
2-3dBi
Impedance:
50
Product Description
Indoor Antenna External Antenna 4G LTE Antenna 3-5dBi SMA Connector UV Resistant 13x206
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 470-510MHz | |
| S.W.R. | <= 2.0 | |
| Antenna Gain | 3dBi | |
| Efficiency | ≈50% | |
| Polarization | Linear | |
| Impedance | 50 Ohm | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N female | |
| Dimension | ¢165*100mm | |
| Color | white | |
| Weight | 0.15Kg | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 80 ˚C | |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain
| Frequency(MHz) | 470.0 | 475.0 | 480.0 | 485.0 | 490.0 | 495.0 | 500.0 | 505.0 | 510.0 |
| Gain (dBi) | 2.04 | 1.98 | 2.15 | 2.11 | 2.08 | 2.06 | 2.07 | 2.29 | 2.47 |
| Efficiency (%) | 41.12 | 41.52 | 42.23 | 42.37 | 42.58 | 41.27 | 41.98 | 44.64 | 46.88 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 470MHz | |
|
|
| 490MHz | |
|
|
| 510MHz | |
|
|
