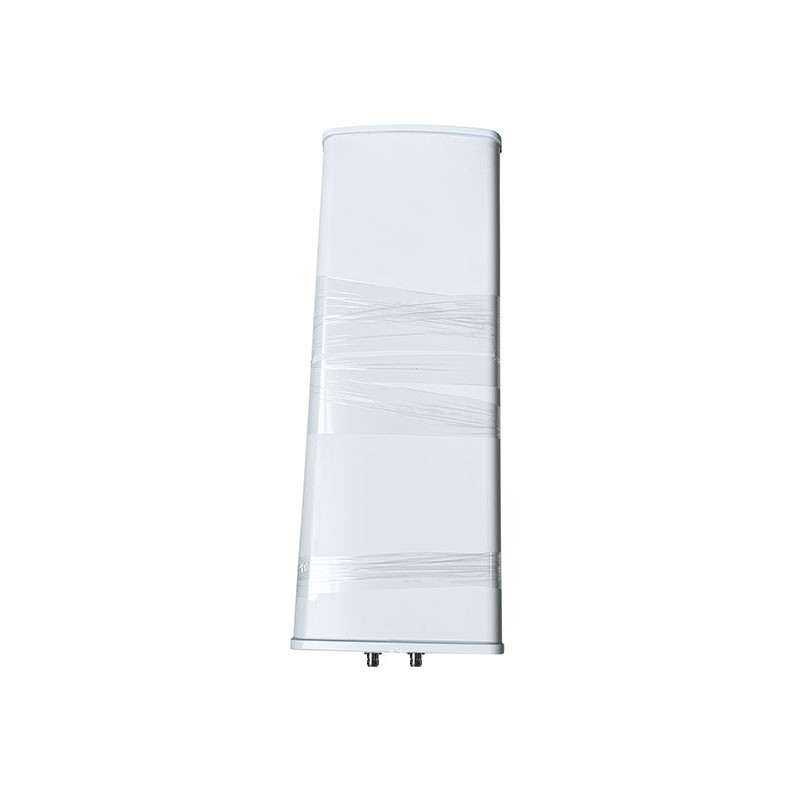

4G LTE 1710-2700M 18dbi dual-polarization directional antenna 800x280x80mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-2700MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 18dBi |
| Polarization | ±45 |
| Horizontal Beamwidth | 40±10° |
| Vertical Beamwidth | 40±10° |
| F/B | >24dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N Female connector |
| Dimension | 800*-280*80mm |
| Radome material | UPVC |
| Weight | 6.5Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Port 1 +45° | Port 2 -45° | |||
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 1710 | 17.083 | 1710 | 17.13 | |
| 1740 | 17.248 | 1740 | 17.153 | |
| 1770 | 17.206 | 1770 | 16.915 | |
| 1800 | 17.123 | 1800 | 17.243 | |
| 1830 | 17.209 | 1830 | 17.341 | |
| 1860 | 17.639 | 1860 | 17.468 | |
| 1890 | 17.787 | 1890 | 17.75 | |
| 1920 | 17.728 | 1920 | 17.642 | |
| 1950 | 17.748 | 1950 | 17.698 | |
| 1980 | 17.964 | 1980 | 17.86 | |
| 2010 | 18.109 | 2010 | 18.175 | |
| 2040 | 18.089 | 2040 | 18.16 | |
| 2070 | 18.448 | 2070 | 18.187 | |
| 2100 | 18.715 | 2100 | 18.478 | |
| 2130 | 18.586 | 2130 | 18.586 | |
| 2160 | 18.617 | 2160 | 18.68 | |
| 2190 | 18.826 | 2190 | 18.69 | |
| 2220 | 18.812 | 2220 | 18.758 | |
| 2250 | 18.929 | 2250 | 18.913 | |
| 2280 | 19.018 | 2280 | 19.065 | |
| 2310 | 19.044 | 2310 | 19.051 | |
| 2340 | 19.133 | 2340 | 19.272 | |
| 2370 | 18.898 | 2370 | 19.27 | |
| 2400 | 18.869 | 2400 | 19.108 | |
| 2430 | 19.091 | 2430 | 18.856 | |
| 2460 | 19.166 | 2460 | 19.034 | |
| 2490 | 19.159 | 2490 | 19.293 | |
| 2520 | 19.455 | 2520 | 19.527 | |
| 2550 | 19.698 | 2550 | 19.668 | |
| 2580 | 19.641 | 2580 | 19.657 | |
| 2610 | 19.699 | 2610 | 19.933 | |
| 2640 | 19.665 | 2640 | 19.754 | |
| 2670 | 19.73 | 2670 | 19.675 | |
| 2700 | 19.456 | 2700 | 19.506 | |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1710MHz | | | |
| 2200MHz | | | |
| 2700MHz | | | |
