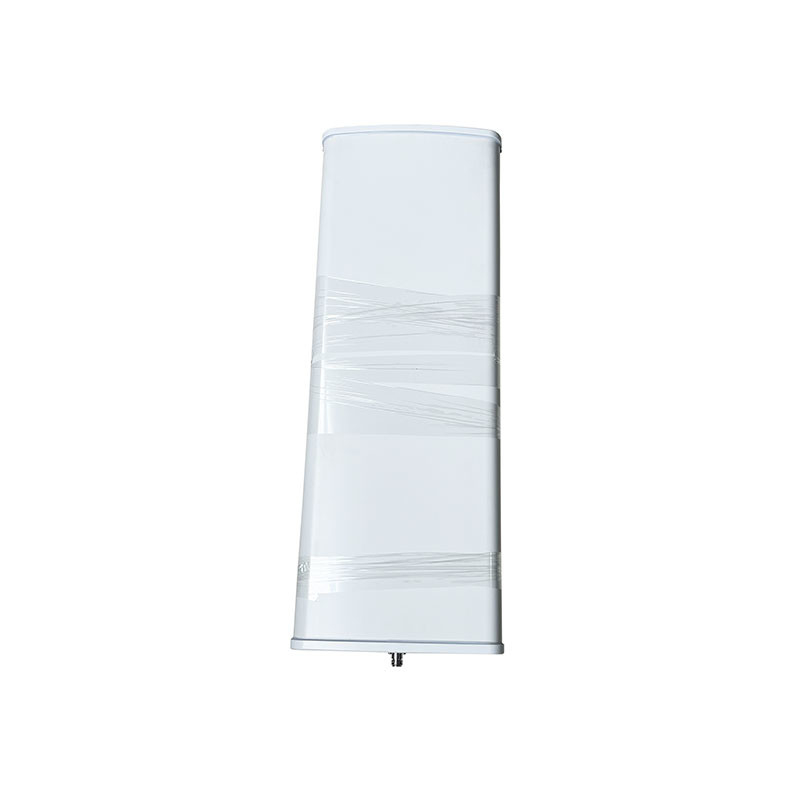

4G LTE 1710-2700M 18dbi Single-Polarization Directional Antenna 800x280x80mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10498-B
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
4G LTE 1710-2700M 18dbi single-polarization directional antenna 800x280x80mm 1. Specification A. Electrical Characteristics Frequency 1710-2700MHz S.W.R. 24dB Impedance 50Ohm Max. Power 100W B. Material & Mechanical Characteristics Connector Type N Female connector Dimension 800*-280*80mm Radome ...
Product Details
Highlight:
1710-2700M directional antenna
,18dbi directional antenna
,directional antenna 800x280x80mm
Frequency:
1710-2700MHz
VSWR:
<2.0
Peak Gain:
18dBi
Impedance:
50
Product Description
4G LTE 1710-2700M 18dbi single-polarization directional antenna 800x280x80mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-2700MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 18dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 40±10° |
| Vertical Beamwidth | 40±10° |
| F/B | >24dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 800*-280*80mm |
| Radome material | UPVC |
| Weight | 6Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 1710 | 17.083 |
| 1740 | 17.248 |
| 1770 | 17.206 |
| 1800 | 17.123 |
| 1830 | 17.209 |
| 1860 | 17.639 |
| 1890 | 17.787 |
| 1920 | 17.728 |
| 1950 | 17.748 |
| 1980 | 17.964 |
| 2010 | 18.109 |
| 2040 | 18.089 |
| 2070 | 18.448 |
| 2100 | 18.715 |
| 2130 | 18.586 |
| 2160 | 18.617 |
| 2190 | 18.826 |
| 2220 | 18.812 |
| 2250 | 18.929 |
| 2280 | 19.018 |
| 2310 | 19.044 |
| 2340 | 19.133 |
| 2370 | 18.898 |
| 2400 | 18.869 |
| 2430 | 19.091 |
| 2460 | 19.166 |
| 2490 | 19.159 |
| 2520 | 19.455 |
| 2550 | 19.698 |
| 2580 | 19.641 |
| 2610 | 19.699 |
| 2640 | 19.665 |
| 2670 | 19.73 |
| 2700 | 19.456 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1710MHz | |
|
|
| 2200MHz | |
|
|
| 2700MHz | |
|
|
