Portable Wideband Directional Antenna 4G LTE 698-2700M 14dbi 390x390x50mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10685-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
4G LTE 698-2700M 14dbi single-polarization directional antenna 390x390x50mm 1. Specification A. Electrical Characteristics Frequency 698-960/1710-2700MHz S.W.R. 20dB Impedance 50Ohm Max. Power 50W B. Material & Mechanical Characteristics Connector Type N Female connector Dimension 390*390*50mm ...
Product Details
Highlight:
wideband directional antenna
,directional antenna 14dbi
,portable directional antenna
Frequency:
698-960/1710-2700MHz
VSWR:
<2.0
Peak Gain:
14dBi
Impedance:
50
Product Description

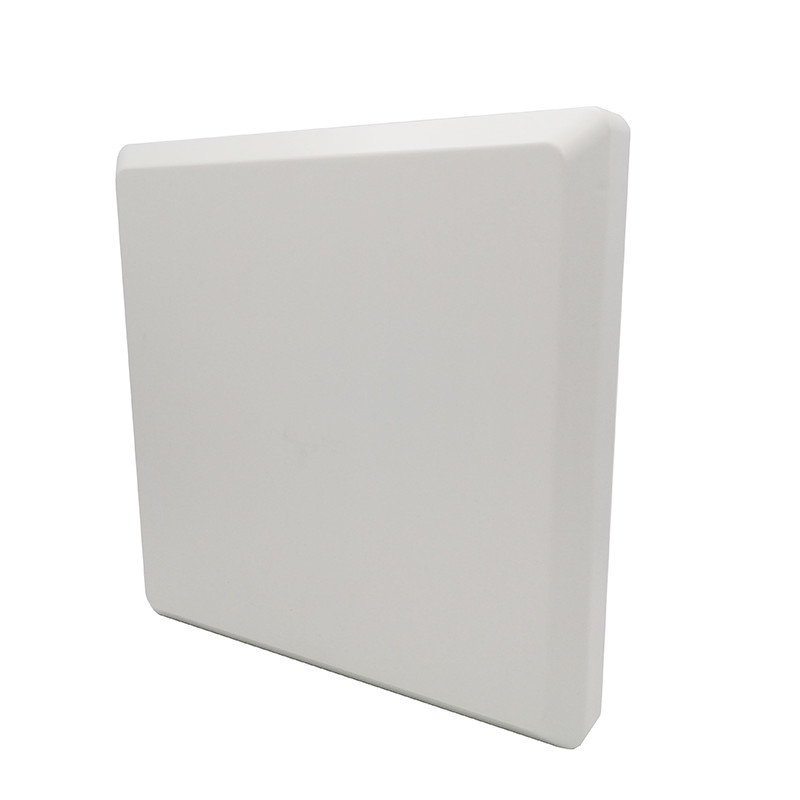

4G LTE 698-2700M 14dbi single-polarization directional antenna 390x390x50mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 698-960/1710-2700MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 10/14dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 55±10° |
| Vertical Beamwidth | 50±5° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 390*390*50mm |
| Radome material | ABS |
| Weight | 3.75Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Frequency(MHz) | Gain(dBi) | |
| 700 | 7.4 | 1700 | 12.4 | |
| 720 | 7.4 | 1800 | 11.2 | |
| 740 | 7.8 | 1900 | 12.9 | |
| 760 | 7.3 | 2000 | 13.4 | |
| 780 | 6.6 | 2100 | 13.8 | |
| 800 | 9.9 | 2200 | 13.1 | |
| 820 | 9.6 | 2300 | 13.2 | |
| 840 | 9.4 | 2400 | 13.0 | |
| 860 | 9.9 | 2500 | 13.0 | |
| 880 | 10.4 | 2600 | 12.9 | |
| 900 | 11.4 | 2700 | 11.6 | |
| 920 | 11.8 | |||
| 940 | 11.1 | |||
| 960 | 10.6 | |||
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 700MHz | |
|
|
| 960MHz | |
|
|
| 1710MHz | |
|
|
| 2200MHz | |
|
|
| 2700MHz | |
|
|
