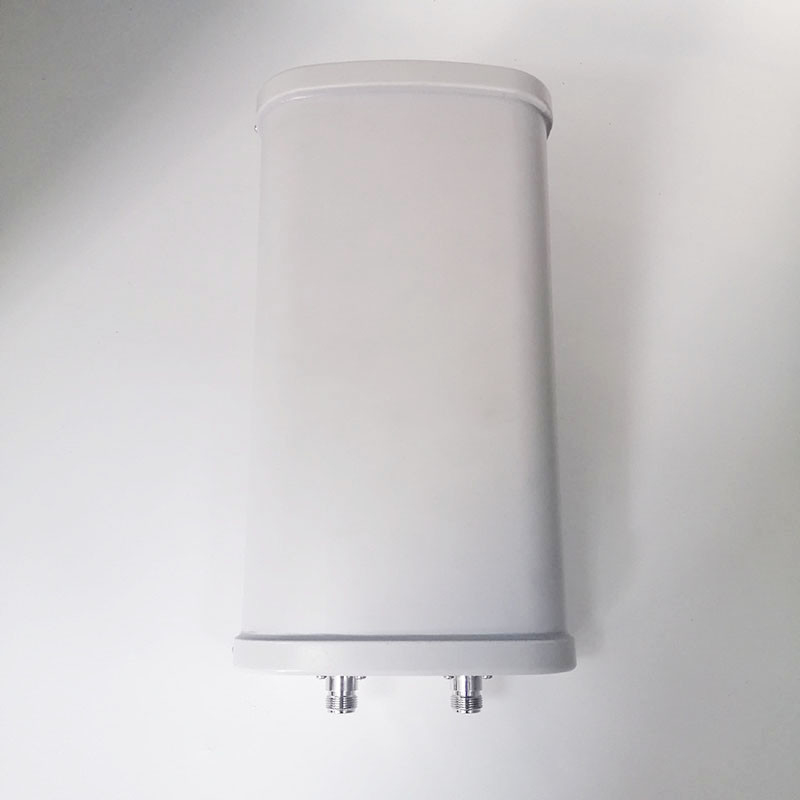

Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm
Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm
Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm
Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm
Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm
Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm

Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10728-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

directional antenna 1710-2700M

,

lora directional antenna

,

gsm directional antenna

Frequency:
1710-2700MHz
VSWR:
<2.0
Peak Gain:
12dBi
Impedance:
50
Frequency:
1710-2700MHz
VSWR:
<2.0
Peak Gain:
12dBi
Impedance:
50
Description
Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm

4G LTE 1710-2700M 12dbi dual-polarization directional antenna 300x160x80mm

1. Specification

A. Electrical Characteristics
Frequency 1710-2700MHz
S.W.R. <= 2.0
Antenna Gain 12dBi
Polarization ±45
Horizontal Beamwidth 65±5°
Vertical Beamwidth 35±5°
F/B >20dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type 2*N Female connector
Dimension 300*160*80mm
Radome material UPVC
Weight 2.2Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 0





2.2  Total Efficiency & Gain:

Port 1   Port 2
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
1700 11.1 1700 10.7
1800 10.9 1800 10.6
1900 11.5 1900 11.1
2000 11.1 2000 10.4
2100 11.8 2100 11.0
2200 11.4 2200 10.7
2300 11.5 2300 11.1
2400 11.4 2400 11.3
2500 11.3 2500 11.2
2600 11.1 2600 11.3
2700 11.3 2700 11.4



2.3 Radiation Pattern

Port 2D-Horizontal 2D-Vertical Horizontal & Vertical
1710MHz Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 1 Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 2 Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 3
2200MHz Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 4 Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 5 Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 6
2700MHz Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 7 Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 8 Gsm Directional Antenna Lora 4G LTE 1710-2700M 12dbi Dual-Polarization 300x160x80mm 9
