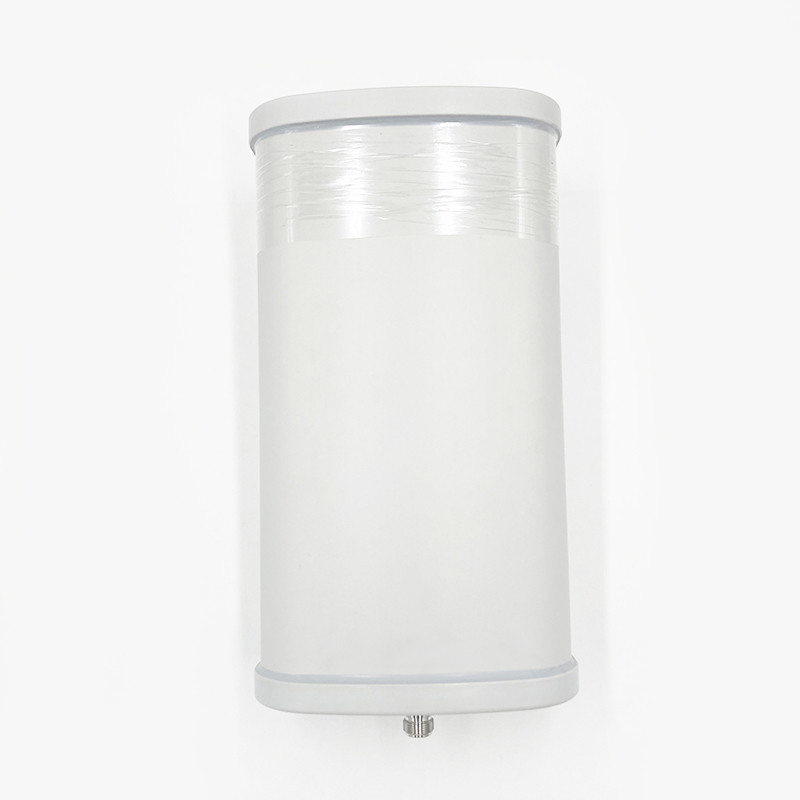

Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm
Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm
Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm
Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm
Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm
Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm

Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10590-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

diy directional antenna

,

directional outdoor antenna

,

directional network antenna

Frequency:
1710-2700MHz
VSWR:
<2.0
Peak Gain:
12dBi
Impedance:
50
Frequency:
1710-2700MHz
VSWR:
<2.0
Peak Gain:
12dBi
Impedance:
50
Description
Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm

4G LTE 1710-2700M 12dbi single-polarization directional antenna 300x160x80mm

1. Specification

A. Electrical Characteristics
Frequency 1710-2700MHz
S.W.R. <= 2.0
Antenna Gain 12dBi
Polarization Vertical
Horizontal Beamwidth 75±5°
Vertical Beamwidth 30±5°
F/B >18dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension 300*160*80mm
Radome material UPVC
Weight 2.1Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 0





2.2  Total Efficiency & Gain:




Frequency(MHz) Gain(dBi)
1700 11.2
1800 11.4
1900 11.2
2000 10.9
2100 11.5
2200 11.7
2300 11.9
2400 11.8
2500 12.0
2600 12.1
2700 12.4



2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
1710MHz Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 1 Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 2 Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 3
2200MHz Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 4 Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 5 Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 6
2700MHz Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 7 Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 8 Diy Outdoor Directional Network Antenna 4G LTE 1710-2700M 12dbi 300x160x80mm 9
