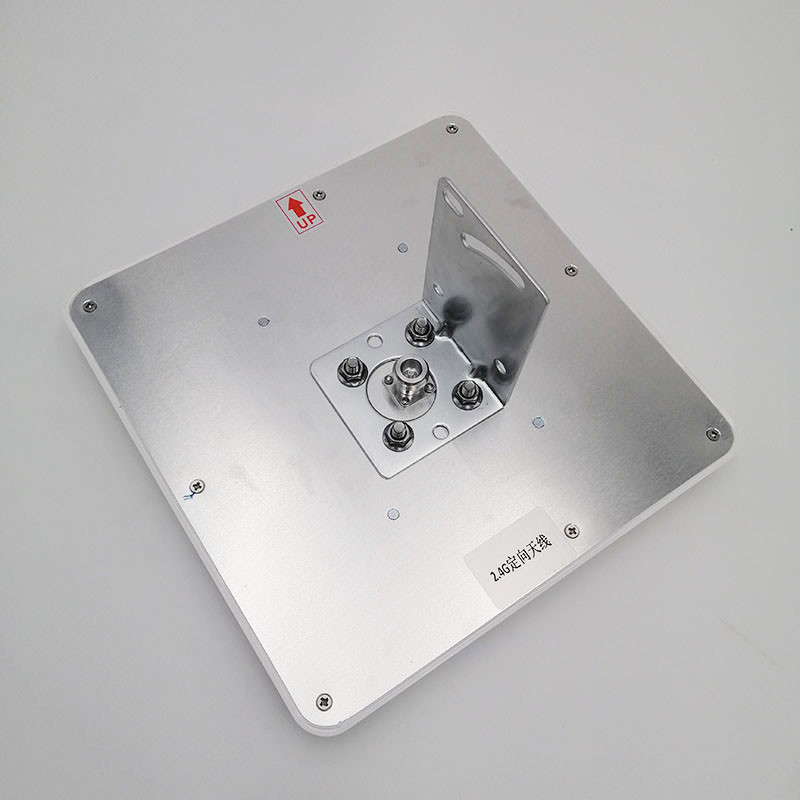

N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm
N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm
N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm
N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm
N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm
N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm

N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10401-B

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

directional antenna 220x220x25mm

,

directional antenna wifi

,

15db directional antenna

Frequency:
2400-2500MHz
VSWR:
<2.0
Peak Gain:
15dBi
Impedance:
50
Frequency:
2400-2500MHz
VSWR:
<2.0
Peak Gain:
15dBi
Impedance:
50
Description
N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm

N Male 2.4G 2400-2500M wifi 15dBi single-polarized wall-mounted directional antenna 220x220x25mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
S.W.R. <= 2.0
Antenna Gain 15dBi
Polarization V
Horizontal Beamwidth 45±5°
Vertical Beamwidth 35±5°
F/B >22dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N-J connector
Dimension 220*220*25mm
Radome material ABS
Weight 1Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 0

2.2  Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
2400 14.574
2410 14.62
2420 14.62
2430 14.733
2440 14.68
2450 14.846
2460 14.861
2470 14.932
2480 14.92
2490 15.008
2500 15.082



2.3 Radiation Pattern

Port1  2D-Horizontal 2D-Vertical Horizontal & Vertical
2400MHz N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 1 N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 2 N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 3
2450MHz N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 4 N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 5 N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 6
2500MHz N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 7 N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 8 N Male 2.4G 2400-2500M Directional Antenna Wifi 15dBi 220x220x25mm 9
