TNC Male Directional 2.4 Ghz Antenna 2400-2500M Wifi 15dBi 220x220x25mm

Name: TNC Male Directional 2.4 Ghz Antenna 2400-2500M Wifi 15dBi 220x220x25mm
Brand: Dongguan Leenz Electronics Co., Ltd
SKU: LZANT-10401-A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10401-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              directional 2.4 ghz antenna, directional antenna 2.4, 15dB directional antenna


Frequency:	2400-2500MHz	VSWR:	<2.0
Peak Gain:	15dBi	Impedance:	50

Frequency:	2400-2500MHz
VSWR:	<2.0
Peak Gain:	15dBi
Impedance:	50

Description

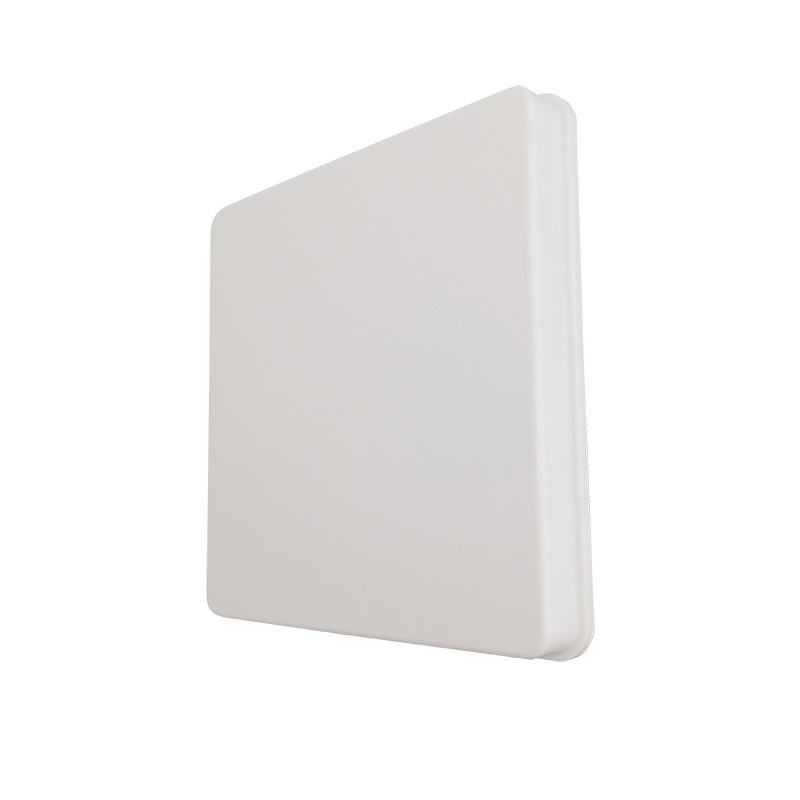

TNC Male Directional 2.4 Ghz Antenna 2400-2500M Wifi 15dBi 220x220x25mm

TNC Male 2.4G 2400-2500M wifi 15dBi single-polarized wall-mounted directional antenna 220x220x25mm

1. Specification

A. Electrical Characteristics
Frequency	2400-2500MHz
S.W.R.	<= 2.0
Antenna Gain	15dBi
Polarization	V
Horizontal Beamwidth	45±5°
Vertical Beamwidth	35±5°
F/B	>22dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	TNC-J connector
Dimension	22022025mm
Radome material	ABS
Weight	1Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
TNC Male Directional 2.4 Ghz Antenna 2400-2500M Wifi 15dBi 220x220x25mm 0

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
2400	14.574
2410	14.62
2420	14.62
2430	14.733
2440	14.68
2450	14.846
2460	14.861
2470	14.932
2480	14.92
2490	15.008
2500	15.082

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
2400MHz
2450MHz
2500MHz
