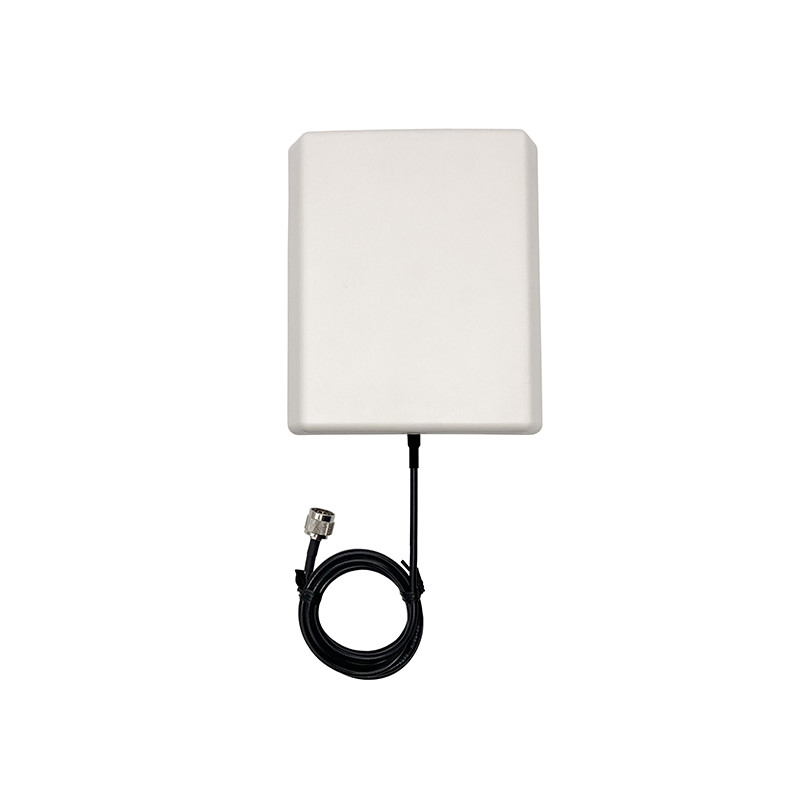

2.4G 2400-2500M wifi 12dBi single-polarized wall-mounted directional antenna 210x180x45mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 12dBi |
| Polarization | V |
| Horizontal Beamwidth | 60±5° |
| Vertical Beamwidth | 45±5° |
| F/B | >18dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | RG58U L=150cm N Female connector |
| Dimension | 210*180*45mm |
| Radome material | ABS |
| Weight | 0.35Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) | Efficiency (%) |
| 2400.0 | 11.96 | 58.95 |
| 2410.0 | 12.02 | 59.20 |
| 2420.0 | 11.96 | 58.19 |
| 2430.0 | 11.90 | 56.76 |
| 2440.0 | 11.89 | 55.83 |
| 2450.0 | 12.03 | 57.65 |
| 2460.0 | 12.17 | 58.19 |
| 2470.0 | 12.19 | 57.29 |
| 2480.0 | 12.13 | 56.36 |
| 2490.0 | 12.20 | 56.64 |
| 2500.0 | 12.30 | 56.89 |
2.3 Radiation Pattern
| Port1 | 3D | 2D-Horizontal | 2D-Vertical |
| 2400MHz | |
|
|
| 2450MHz | |
|
|
| 2500MHz | |
|
|
