1.2 Ghz Yagi Antenna 1080-1360M 8dBi UAV Directional Antenna 210x180x45mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-11101-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
1.2G1080-1360M 8dBi single-polarization UAV directional antenna 210x180x45mm . Specification A. Electrical Characteristics Frequency 1080-1360MHz S.W.R. 19dB Impedance 50Ohm Max. Power 50W B. Material & Mechanical Characteristics Cable Type RG58U Cable, length 300mm Connector Type SMA Male Dimension ...
Product Details
Highlight:
1.2 ghz yagi antenna
,1.2 ghz yagi
,uav directional antenna
Frequency:
1080-1360MHz
VSWR:
<2.0
Peak Gain:
8dBi
Impedance:
50
Product Description

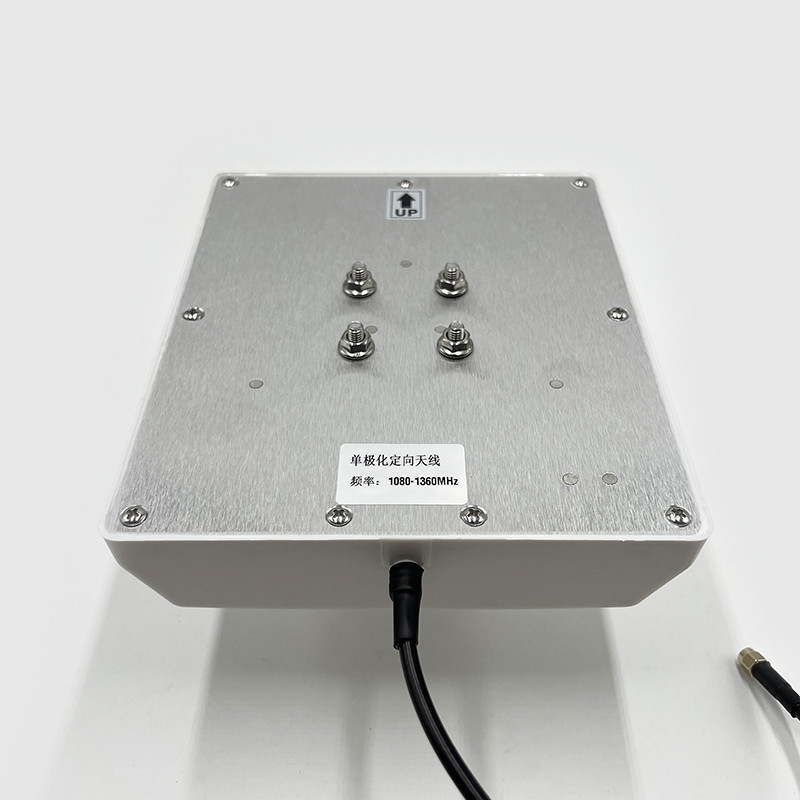

1.2G1080-1360M 8dBi single-polarization UAV directional antenna 210x180x45mm
. Specification
| A. Electrical Characteristics | |
| Frequency | 1080-1360MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 8dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 85±10° |
| Vertical Beamwidth | 60±10° |
| F/B | >19dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Cable Type | RG58U Cable, length 300mm |
| Connector Type | SMA Male |
| Dimension | 210*180*45mm |
| Radome material | ABS |
| Weight | 0.65Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | Gain(dBi) |
| 1080 | 7.1 |
| 1100 | 7.1 |
| 1120 | 7.5 |
| 1140 | 7.7 |
| 1160 | 7.8 |
| 1180 | 8.0 |
| 1200 | 7.7 |
| 1220 | 7.8 |
| 1240 | 7.9 |
| 1260 | 8.0 |
| 1280 | 8.1 |
| 1300 | 7.8 |
| 1320 | 7.5 |
| 1340 | 7.2 |
| 1360 | 6.6 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1080MHz | |
|
|
| 1220MHz | |
|
|
| 1360MHz | |
|
|
