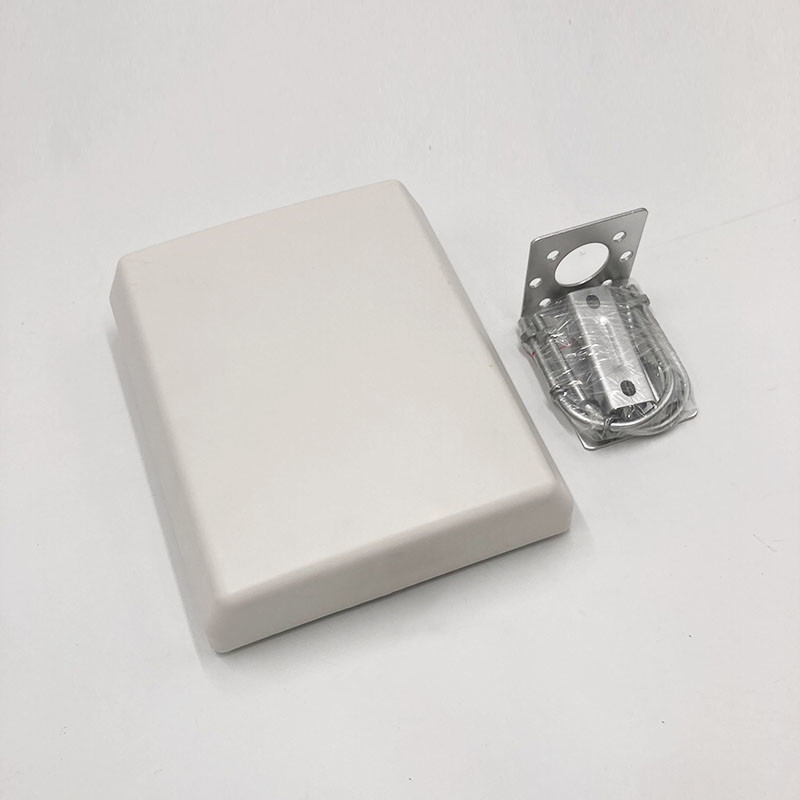

800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm

800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10893-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

800 mhz directional antenna 210x180x45mm

,

directional antenna 210x180x45mm

,

5db directional antenna

Frequency:
790-820MHz
VSWR:
<2.0
Peak Gain:
5dBi
Impedance:
50
Frequency:
790-820MHz
VSWR:
<2.0
Peak Gain:
5dBi
Impedance:
50
Description
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm

800M790-820M Single-polarized 5dbi directional antenna 210x180x45mm

1. Specification

A. Electrical Characteristics
Frequency 790-820MHz
S.W.R. <= 2.0
Antenna Gain 5dBi
Polarization Vertical
Horizontal Beamwidth 75°
Vertical Beamwidth 75°
F/B >13dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension 210*180*45mm
Radome material ABS
Weight 0.7Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 0



2.2  Total Efficiency & Gain:



Frequency(MHz) Gain(dBi)
790 4.4
795 4.6
800 4.7
805 4.7
810 5.0
815 5.2
820 5.4


2.3 Radiation Pattern

Port1  2D-Horizontal 2D-Vertical Horizontal & Vertical
790MHz 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 1 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 2 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 3
805MHz 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 4 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 5 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 6
820MHz 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 7 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 8 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 9
