800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm
800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm
800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm
800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm
800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm
800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm

800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10576-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

800 mhz directional antenna 210x180x45mm

,

directive antenna

,

7db directional antenna

Frequency:
800MHz
VSWR:
<2.0
Peak Gain:
7dBi
Impedance:
50
Frequency:
800MHz
VSWR:
<2.0
Peak Gain:
7dBi
Impedance:
50
Description

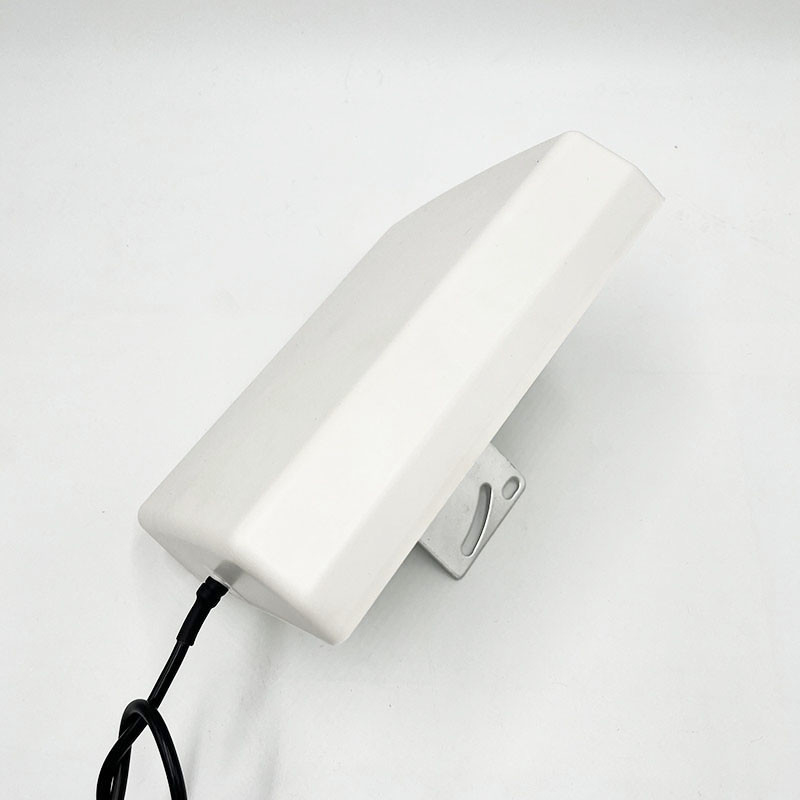

800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm

800M 7dbi single-polarization directional antenna 210x180x45mm

 Specification

A. Electrical Characteristics
Frequency 800MHz
S.W.R. <2.0
Antenna Gain 7dBi
Polarization Vertical
Horizontal Beamwidth 85°
Vertical Beamwidth 75°
F/B >15dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Cable Type RG58U Cable, length 300mm
Connector Type SMA connector
Dimension 210*180*45mm
Radome material ABS
Weight 0.65Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 0





2.2  Total Efficiency & Gain:



Frequency(MHz) Gain(dBi)
795 6.9
796 7.0
797 7.0
798 7.0
799 7.1
800 7.1
801 7.1
802 7.1
803 7.1
804 7.1
805 7.1



2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
795MHz 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 1 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 2 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 3
800MHz 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 4 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 5 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 6
805MHz 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 7 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 8 800 Mhz Directional Antenna 7dbi Single-Polarization Directive Antenna 210x180x45mm 9
