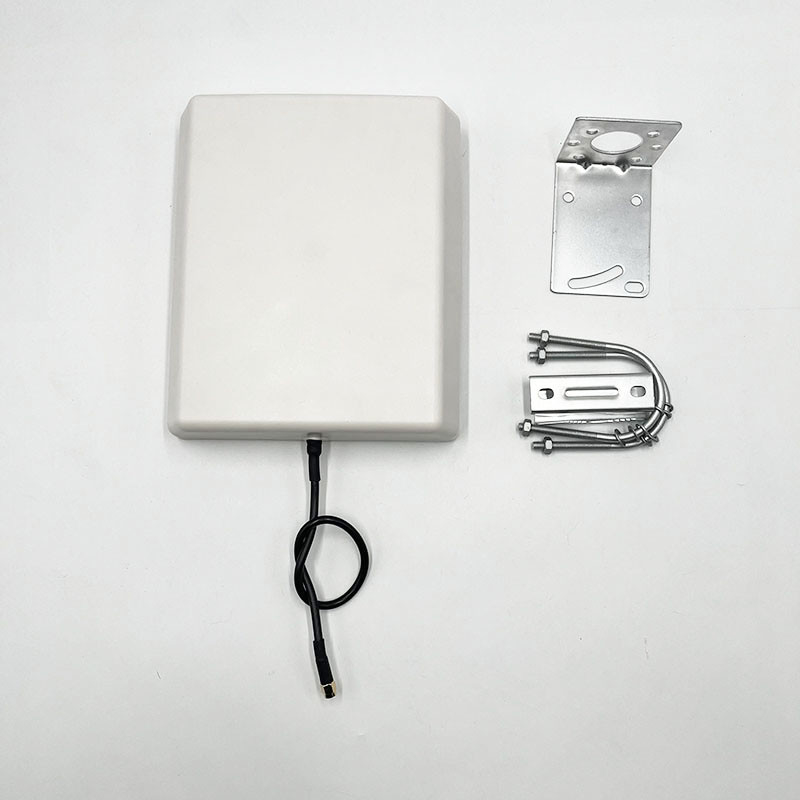

500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm
500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm
500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm
500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm
500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm
500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm

500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm

Product Details

Place of Origin: China

Brand Name: Leenz

Certification: RoHs

Model Number: LZANT-10575-A

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 10

Delivery Time: 15 days

Payment Terms: T/T

Supply Ability: 5K per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

directional antenna 210x180x45mm

,

directional antenna for wifi router

,

3db directional antenna

Frequency:
500MHz
VSWR:
<2.0
Peak Gain:
3dBi
Impedance:
50
Frequency:
500MHz
VSWR:
<2.0
Peak Gain:
3dBi
Impedance:
50
Description
500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm

500M 3dbi single-polarization directional antenna 210x180x45mm

. Specification

A. Electrical Characteristics
Frequency 500MHz
S.W.R. <2.0
Antenna Gain 3dBi
Polarization Vertical
Horizontal Beamwidth 110°
Vertical Beamwidth 110°
F/B >17dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Cable Type RG58U Cable, length 300mm
Connector Type SMA connector
Dimension 210*180*45mm
Radome material ABS
Weight 0.65Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR


500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 0





2.2  Total Efficiency & Gain:



Frequency(MHz) Gain(dBi)
495 2.7
496 2.7
497 2.7
498 2.8
499 2.9
500 3.0
501 3.1
502 3.2
503 3.3
504 3.3
505 3.3


2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
495MHz 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 1 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 2 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 3
500MHz 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 4 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 5 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 6
505MHz 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 7 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 8 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 9
