4G Lte Omni Directional Antenna Waterproof Fiberglass Antenna 16x350mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10260-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
4G LTE omni outdoor AP base station gateway with external waterproof fiberglass antenna 16x350mm1. SpecificationA. Electrical CharacteristicsFrequency806-960MHz1710-2700MHzImpedance50 Ohm50 OhmS.W.R.
Product Details
Highlight:
lte omni directional antenna
,4G fiberglass antenna 16x350mm
,waterproof fiberglass antenna 16x350mm
Frequency:
806-960/1710-2700M
VSWR:
<2
Peak Gain:
3/6dBi
Impedance:
50
Product Description

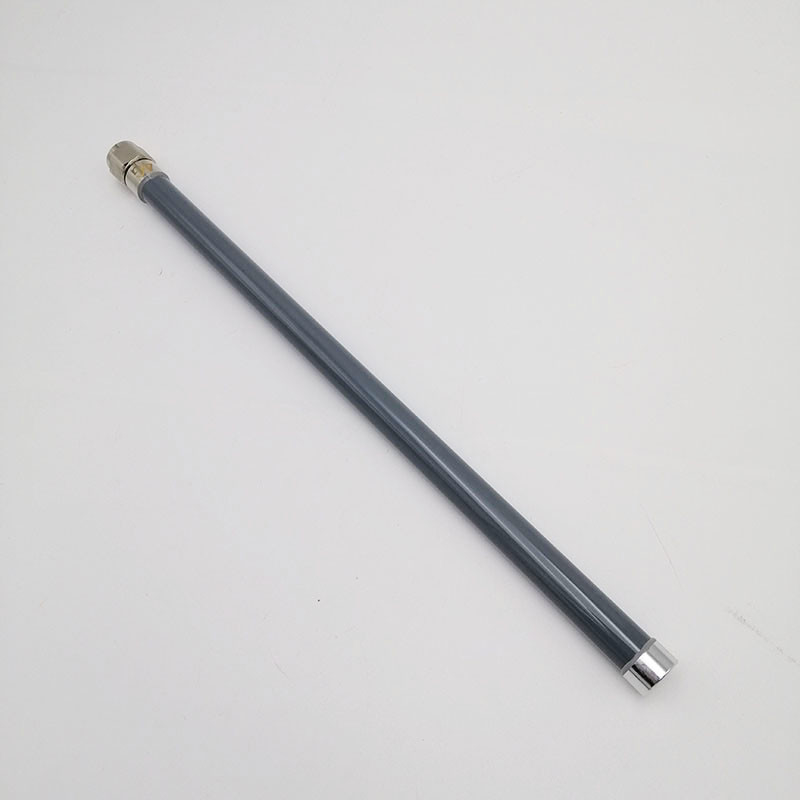

4G LTE omni outdoor AP base station gateway with external waterproof fiberglass antenna 16x350mm
1. Specification
| A. Electrical Characteristics | ||
| Frequency | 806-960MHz | 1710-2700MHz |
| Impedance | 50 Ohm | 50 Ohm |
| S.W.R. | <2 | <2 |
| Gain | 3dBi | 5dBi |
| Efficiency | ≈70% | ≈70% |
| Polarization | Linear | Linear |
| Horizontal Beamwidth | 360° | 360° |
| Vertical Beamwidth | 80° | 30° |
| Max Power | 50W | |
| B. Material & Mechanical Characteristics | ||
| Connector Type | N Male | |
| Dimension | Φ16*350mm | |
| Weight | 0.11Kg | |
| Radome material | Fiberglass | |
| C. Environmental | ||
| Operation Temperature | - 40 ˚C ~ + 85˚C | |
| Storage Temperature | - 40 ˚C ~ + 85˚C | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 760.0 | 780.0 | 800.0 | 820.0 | 840.0 | 860.0 | 880.0 | 900.0 | 920.0 | 940.0 | 960.0 |
| Gain (dBi) | 0.15 | 0.72 | 1.01 | 1.49 | 1.38 | 1.25 | 1.95 | 1.90 | 2.89 | 3.31 | 3.54 |
| Efficiency (%) | 54.28 | 70.29 | 78.11 | 87.48 | 79.63 | 71.16 | 74.10 | 62.66 | 61.68 | 59.82 | 56.25 |
| Frequency(MHz) | 1710.0 | 1800.0 | 1890.0 | 2160.0 | 2250.0 | 2340.0 | 2430.0 | 2520.0 | 2610.0 | 2700.0 |
| Gain (dBi) | 5.08 | 3.59 | 1.03 | 2.01 | 1.75 | 2.11 | 2.65 | 2.68 | 3.03 | 3.11 |
| Efficiency (%) | 75.75 | 60.43 | 43.73 | 59.02 | 64.59 | 73.18 | 74.16 | 76.73 | 80.12 | 75.62 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 800MHz | | | |
| 880MHz | | | |
| 960MHz | | | |
| 3D | 2D-Horizontal | 2D-Vertical | |
| 1710MHz | | | |
| 2250MHz | | | |
| 2700MHz | | | |
