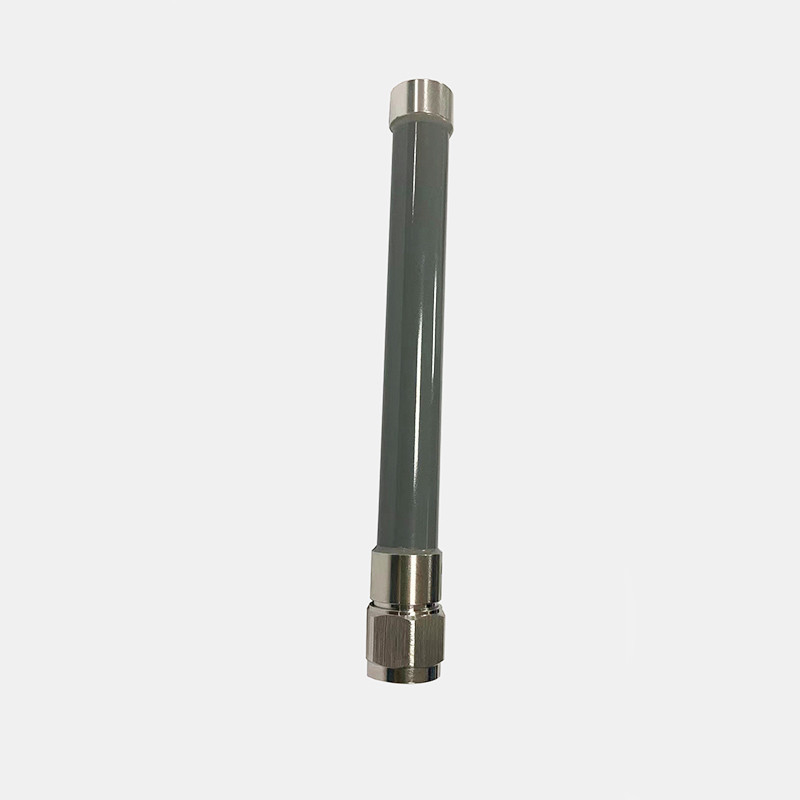

Omni Lte Antenna FRP Antenna Outdoor WIFI 2.4G Antenna 16x150mm
Basic Properties
Place of Origin:
China
Brand Name:
Leenz
Certification:
RoHs
Model Number:
LZANT-10400-A
Trading Properties
Minimum Order Quantity:
10
Payment Terms:
T/T
Supply Ability:
5K per day
Product Summary
Omni Antenna Fiber Glass antenna FRP Antenna WIFI 2.4G Antenna 16x150mm 1. Specification A. Electrical Characteristics Frequency 2400-2500MHz Impedance 50 Ohm S.W.R.
Product Details
Highlight:
omni lte antenna
,omni directional wifi
,omni directional antenna outdoor
Frequency:
2400-2500MHz
VSWR:
<2.0
Peak Gain:
3dBi
Impedance:
50
Product Description
Omni Antenna Fiber Glass antenna FRP Antenna WIFI 2.4G Antenna 16x150mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 3dBi |
| Efficiency | ≈79% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 50±5° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N-J connector |
| Dimension | Φ16*150mm |
| Weight | 0.08Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
| Frequency(MHz) | 2400.0 | 2410.0 | 2420.0 | 2430.0 | 2440.0 | 2450.0 | 2460.0 | 2470.0 | 2480.0 | 2490.0 | 2500.0 |
| Gain (dBi) | 3.61 | 3.48 | 3.28 | 3.15 | 3.35 | 3.51 | 3.55 | 3.43 | 3.30 | 3.29 | 3.36 |
| Efficiency (%) | 86.88 | 85.57 | 80.70 | 76.22 | 78.22 | 81.40 | 83.77 | 82.21 | 79.76 | 80.47 | 84.04 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz | |
|
|
| 2450MHz | |
|
|
| 2500MHz | |
|
|
